HASCO standard brass 90 degree angle valve water quick coupling, whose thread specifications usually cover both inch Standard and Metric Standard, can be customized according to customer needs. From the perspective of function, there are two types, one is a shut off quick connector, and the other is an open flow quick connector, and the housing can also be equipped with a safety device.
| Quantity: | |
|---|---|
Our European Standard 90° Angle Male Thread Mold Quick Coupling (HASCO standard compliant) is a precision-engineered industrial fluid connection component, purpose-built for mold temperature control and coolant circulation systems. Machined from high-grade brass, this 90 degree angled mold cooling quick coupling features a standardized male thread end and right-angle bend design, available in both shut off and open flow configurations to match diverse industrial demands. Designed for tool-free, one-hand connection and disconnection, this brass male thread quick release coupling drastically cuts downtime during mold changes, making it a critical solution for users including injection molding factories, die casting workshops, mold manufacturers, and industrial equipment integrators. With customizable thread specifications covering both metric and imperial standards, our coupling delivers reliable performance in harsh industrial environments, supporting long-term stable operation of your production lines.
Crafted from high-purity brass, our mold cooling quick coupling offers exceptional corrosion and wear resistance, eliminating frequent replacement costs for bulk industrial users. The internal O-ring seal is made of high-performance Viton (fluorine rubber), withstanding extreme temperatures from -20℃ to 160℃, ensuring zero leakage even during long-term circulation of high-temperature cooling media. This robust construction guarantees stable performance in continuous production, reducing unplanned maintenance and production interruptions.
We offer two core configurations for this European standard mold quick coupling: shut off and open flow, to adapt to different circuit control needs. The shut off model automatically cuts off media flow when disconnected, preventing coolant or hydraulic oil spillage, while the open flow model ensures unobstructed medium circulation for high-flow cooling scenarios. The coupling housing can be equipped with an optional safety locking device, avoiding accidental disconnection during operation and improving on-site safety for industrial workshops.
The 90° right-angle bend is perfectly adapted to narrow installation spaces inside molds and equipment, avoiding hose bending and flow obstruction, and optimizing cooling circuit layout. The male thread end complies with global industrial standards, with regular specifications including M14×1.5, M16×1.5, M24×1.5, G1/2, and fully customizable options to match your existing hose and equipment interfaces. This quick disconnect mold coupling enables automatic connection: simply push to lock, and slide the housing to release, greatly improving mold change efficiency and reducing labor costs for production enterprises.
Engineered for low-pressure coolant line connection, this injection molding hydraulic quick coupling supports a working pressure range of 0-20bar, adapting to most mold cooling and low-pressure hydraulic system requirements. It efficiently conveys water, cooling oil, and other industrial media, helping achieve rapid mold heating or cooling, shorten product molding cycles, and improve production efficiency and product qualification rate for plastic processing enterprises.

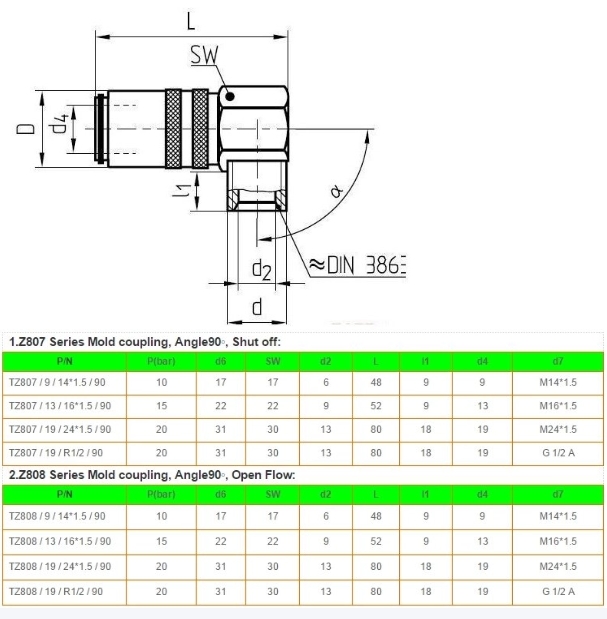

Parameter | Core Details |
Part Number Series | TZ807/90° (Shut Off), TZ808/90° (Open Flow) |
Main Body Material | High-Grade Brass |
Seal Material | Viton (Fluorine Rubber) |
Structural Shape | 90° Angled |
Standard Male Thread Options | M14×1.5, M16×1.5, M24×1.5, G1/2, Customizable |
Operating Temperature Range | -20℃ to Max 160℃ |
Working Pressure Range | 0-20bar |
Flow Type | Shut Off / Open Flow (Optional) |
Compliance Standard | European Standard, HASCO Standard |
This 90° male thread mold quick coupling is widely used in industrial scenarios requiring frequent fluid circuit connection, with core applications including:
Injection molding and die casting mold cooling systems (core scenario)
Low-pressure hydraulic and coolant circuits of molding equipment
Industrial temperature control equipment including welding machines and hot runner systems
Plastic and rubber processing production lines including extrusion and blow molding equipment
We offer two standard configurations: shut off (valved) and open flow (non-valved). The shut off type stops media flow immediately when disconnected to prevent leakage, while the open flow type maintains unobstructed flow for high-circulation cooling needs. Both can be equipped with safety locking devices per your requirements.
Yes. In addition to standard metric and imperial thread options, we fully support customized thread specifications to match your existing equipment, hose fittings, and mold interface requirements, ensuring perfect compatibility with your production system.
