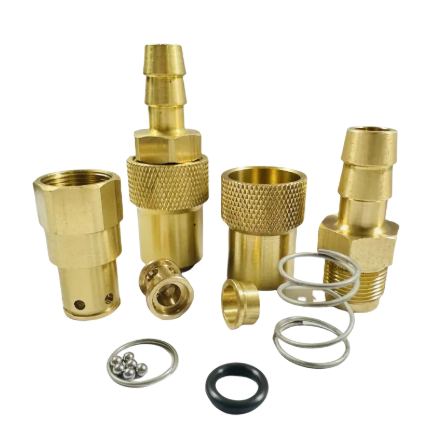

Why do similar quick couplings fail to connect securely? Small profile differences can cause leaks or poor locking. A Japanese Standard Quick Coupling requires careful profile and dimension checks. This guide compares Japanese, European, and American designs and explains how to verify compatibility before purchasing replacements.
A coupling profile is the shape and arrangement of features that allow two components to connect. It includes the plug nose, outer diameter, grooves, shoulders, and sealing surfaces. The socket must match these features for the connection to engage correctly. This profile is separate from the thread used to attach the coupling to equipment.
Japanese Standard Quick Coupling usually refers to a product family designed around a particular mating interface. However, the label alone does not define every dimension across all manufacturers. Different series may use distinct plug shapes, locking features, or internal valve arrangements. Buyers should therefore identify the exact product series before selecting a replacement.
For example, a pneumatic connector may have a threaded end that fits an air-line fitting. Its plug may still be incompatible with the socket installed on the tool. The thread connects the fitting to the equipment, while the coupling profile connects the two quick-release components. Both interfaces need independent verification.
Tip： A regional standard label does not guarantee universal compatibility. Confirm the exact coupling series and mating dimensions.
The plug provides several useful clues when identifying a coupling family. Check its nose shape, external diameter, insertion length, locking grooves, and shoulder positions. These features control how the plug enters the socket and engages its retention mechanism. Even small differences may affect locking and sealing.
Start by recording the visible model markings and measuring the critical dimensions. Compare them against the manufacturer's technical drawing rather than relying on appearance. If the plug is worn, damaged, or corroded, its current dimensions may not reflect the original design. An original drawing or unused reference component provides a more reliable comparison.
Buyers should also check whether the plug includes a valve or other internal features. Different designs may affect airflow or fluid flow after connection. A connector that physically fits may still have a different operating function. Always compare the complete specification before approving a substitute.
The socket is designed to accept a compatible plug and retain it during operation. Its internal bore, locking elements, and seal position must match the plug's geometry. When the plug enters, the locking mechanism should engage as intended. The sealing surfaces must also reach their correct positions.
A socket that appears similar may have a different internal profile. This can prevent full insertion or stop the locking mechanism from engaging properly. In other cases, the plug may connect but fail to seal reliably. These issues can cause unexpected disconnection, leakage, or reduced system performance.
Whenever possible, confirm the plug and socket as a matched pair. Do not combine components from different manufacturers unless compatibility is documented. If the original series is unknown, provide the supplier with photographs, measurements, and equipment details. Request confirmation of the exact mating combination before ordering.
Similar product shapes do not necessarily indicate identical engineering specifications. Manufacturers may use different tolerances, locking structures, seal positions, or valve designs. These differences can affect connection force, retention, and flow performance. A small change in a critical feature may prevent reliable operation.
Product series can also serve different applications. Some connectors are designed for pneumatic tools, while others support cooling-water circuits or different fluid systems. Materials, sealing arrangements, and operating ratings may vary accordingly. Buyers should not assume that all products carrying a Japanese-standard label share the same dimensions or intended use.
Begin with the original part number, equipment manual, or product marking. Check the manufacturer's catalog for the corresponding plug and socket series. If the model cannot be identified, record the critical dimensions and photograph both connection ends. Include the equipment type and operating medium.
Compare the available information with official drawings and product specifications. Ask the supplier to confirm the mating profile and any differences from the original component. This process helps buyers avoid selecting a replacement based only on a general product description.
Tip： Keep approved model numbers and technical drawings in one record. This makes future replacement orders easier to verify.
Japanese and European quick couplings may look similar, but their mating profiles can differ. Plug geometry, locking grooves, and engagement dimensions determine whether the components can connect. Regional labels help identify product families, but they cannot replace dimensional verification.
European-style pneumatic couplings are often identified by their specific plug-and-socket designs. Japanese-style couplings also use defined profiles, but exact dimensions depend on the product series. Buyers should compare the manufacturer's drawings rather than assume one design fits another. This is especially important when replacing couplings across brands or equipment types.
American-style and Japanese-style couplings may use different plug shapes and locking arrangements. Their nominal sizes may appear similar, yet the mating interfaces can remain incompatible. A plug might enter a socket without locking correctly. Another combination may engage but fail to provide a reliable seal.
When comparing the two designs, check the plug nose, outer diameter, groove position, and insertion depth. Also verify the socket's locking mechanism and sealing arrangement. These details are more useful than comparing product names alone.
Yes, different coupling families can use the same nominal thread size. However, matching threads only confirms compatibility at the threaded interface. It does not establish whether the plug and socket can connect.
For example, an adapter may fit the equipment port while carrying an incompatible quick-connect profile. The installation may look correct but still fail during operation. Verify both interfaces independently and request technical confirmation whenever regional designs are mixed.
Tip： Thread compatibility and coupling-profile compatibility are separate checks. Both must pass before installation.
Measure the plug diameter at the specified location. Then inspect its nose shape, shoulders, grooves, and other mating features. These dimensions determine how the plug enters the socket and reaches the locking position. Use the manufacturer's drawing to identify the correct measurement points.
A ruler may help with an initial inspection, but precision measuring tools provide better results. Record the measurements consistently and compare them against verified specifications. If the plug shows wear, do not assume its current dimensions represent the original design.
Insertion depth affects how the plug engages the socket. Locking grooves must align with the socket's retention mechanism. If either feature differs, the connection may not lock securely or seal correctly.
Measure the insertion length and groove positions against the product drawing. Do not force an uncertain plug into a socket to test compatibility. This can damage the locking parts and sealing surfaces. Instead, confirm the model or ask the supplier to verify the proposed combination.
The socket's internal dimensions are just as important as the plug's external shape. Check the bore, engagement area, locking components, and seal position. These features control connection security and leakage prevention.
When replacing a complete coupling, evaluate both halves together. A compatible plug does not guarantee that every socket in the same nominal size will work. Confirm the exact series and mating combination before approving the replacement.
Self-locking mechanisms help retain the plug after insertion. Depending on the design, a sleeve or internal locking element secures the mating component. Correct engagement depends on the plug profile and the socket's locking geometry.
Do not assume that all self-locking couplings use the same mechanism. Check the product drawing and release instructions. The selected replacement should match the equipment's connection requirements and intended operating conditions.
Some couplings release through a sliding sleeve, while others use different retention arrangements. The release method affects maintenance access and the steps required for safe disconnection. Buyers should confirm how the original connector operates before choosing an alternative.
Check whether the replacement provides the same connection function. Follow the manufacturer's procedure and depressurize the system before disconnecting pneumatic components. Never rely on appearance alone to judge whether the plug is securely retained.
Some quick couplings contain shut-off valves that limit fluid or air loss when disconnected. Others use different internal designs. Valve structure can affect flow capacity, pressure loss, and connection behavior.
Seals must also suit the operating medium and temperature. Incorrect seal placement or material can cause leakage or premature wear. Confirm the seal specifications and valve function before replacing the coupling.
Start with the original part number, equipment manual, or manufacturer's catalog. If these are unavailable, record the dimensions and photograph the connector. Include the equipment type and the intended application.
Compare the proposed replacement against the original specification. If the original model has been discontinued, request a documented alternative. Avoid selecting a product based solely on the phrase Japanese Standard Quick Coupling.
The coupling must suit its application as well as its connection profile. Pneumatic tools, compressed-air lines, automotive equipment, and cooling-water systems may have different requirements. Material selection, sealing design, and pressure ratings must match the intended medium.

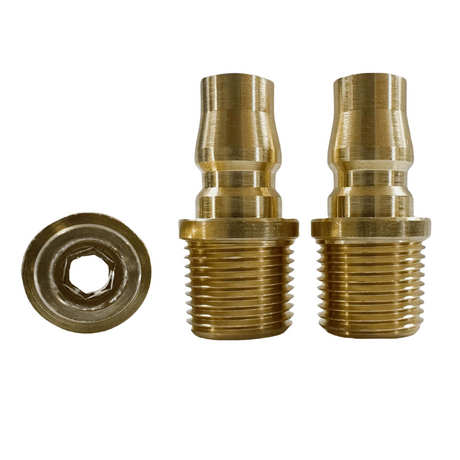

For example, Japanese Standard Hex Hole Cooling Water Nipples provide a reference for Japanese-standard cooling-water connection products. Buyers should verify their actual specifications and intended use before considering them for a particular system.
Check the thread standard, nominal size, pitch, and connection gender. Then verify the working-pressure rating, temperature range, and required flow. These specifications help determine whether the product suits the complete system.
For threaded installations, Japanese Standard Brass Male And Female Extension Fitting offers a reference for male and female fitting configurations. Its product name alone does not confirm compatibility with a particular quick coupling. Always compare the technical drawing and operating requirements.
Tip： Request written confirmation of the exact mating model before placing a bulk order.
Japanese, European, and American labels do not guarantee interchangeable profiles. Their dimensions and locking mechanisms may differ. Always confirm the exact coupling family before selecting a replacement.
Similar shapes and nominal sizes can hide different mating dimensions. Check the plug profile, socket geometry, insertion depth, and thread specifications. Use verified technical drawings rather than visual comparisons.
Unverified substitutions can cause leakage, poor retention, or restricted flow. Compare the proposed product against the original specifications. Confirm the complete assembly and follow the manufacturer's installation procedure.
For pneumatic hose installations, Brass Nipple Hose Barb Pneumatic Male PT Hose Fitting provides another fitting reference. Verify the hose connection, thread standard, and intended operating conditions before use.
Japanese Standard Quick Coupling compatibility depends on profile geometry, locking features, threads, and sealing design. Tianying company offers Japanese-standard fittings and brass connection options for varied industrial applications. These products help buyers identify suitable connections and improve installation reliability.
A: Its plug geometry, locking grooves, and sealing surfaces determine compatibility.
A: They may differ from European and American designs in mating dimensions and locking features.
A: Not always. Verify the profile and manufacturer specifications.
A: Measure plug diameter, insertion depth, and thread specifications.
A: Incorrect profiles, damaged seals, or mismatched sockets can cause leakage.
