A small air leak can waste energy and disrupt production. How can you detect it before problems grow? A Pneumatic Quick Coupling needs reliable sealing to maintain pressure. This guide explains practical leak tests, common causes, and effective repair methods.
Before testing, identify the coupling type and confirm its rated pressure. Check whether the connection uses NPT threads, BSP threads, hose barbs, or another interface. These details affect the correct inspection and installation procedures. Prepare a suitable leak-detection solution, pressure gauge, and approved testing equipment. Never exceed the manufacturer's pressure limits during testing.
Safety must come before any physical inspection. Isolate the pneumatic supply and release stored pressure before disconnecting components. Never loosen a pressurized fitting or place your hands near a suspected high-pressure leak. If the coupling belongs to a vehicle air-brake system, follow the applicable service procedures. These systems require additional precautions because leakage can affect braking performance.
Examine the coupling body for cracks, corrosion, deformation, and damaged threads. Check the plug, socket, locking sleeve, and accessible sealing surfaces. Look for worn O-rings, dirt, scratches, or other conditions that may prevent proper sealing. For hose connections, inspect the hose condition and its attachment to the fitting. For threaded connections, check whether the correct thread standard and sealing method were used.
After inspection, reconnect the components only when the system is safe and the installation procedure permits it. Confirm that compatible mating parts engage correctly. A coupling that looks intact may still leak because of internal seal damage or incomplete engagement. Visual inspection is therefore an initial screening method, not a complete leak test.
A compatible leak-detection solution is a practical option for locating leaks around accessible pneumatic connections. Apply the solution to the suspected joint, thread interface, or coupling connection. Restore pressure only according to the approved test procedure. Observe the treated area for bubbles that continue forming or gradually increase in size. Persistent bubble growth indicates a potential leak at that location.
Do not confuse application foam with continuous bubble formation. Freshly applied solution may contain bubbles that do not indicate escaping air. Wipe the surface clean and repeat the test when necessary. Use a commercial leak-detection product suitable for the materials and operating conditions. Avoid solutions that may damage seals, coatings, or nearby equipment.
Tip： Test one connection at a time whenever possible. This makes it easier to identify the actual leakage source.
Listen for a hissing sound around the coupling body and connection interfaces. Audible inspection is useful during routine maintenance, especially when a leak is large enough to produce noticeable noise. However, background machinery can make the sound difficult to identify. Small leaks may also remain undetected through listening alone.
Use an appropriate electronic leak detector when manual inspection produces uncertain results. Electronic equipment can help identify leakage in crowded machinery or difficult-to-access locations. Confirm suspected leaks using a suitable verification method before replacing components. The absence of audible noise does not prove that the coupling is leak-free.
A pressure drop test helps assess whether an isolated pneumatic section can maintain pressure. First, isolate the test section using an approved procedure. Record the initial pressure, test duration, temperature, and relevant system conditions. Monitor the pressure gauge throughout the test. A pressure decrease may indicate leakage, but it does not automatically identify the coupling as the source.
Other connections, valves, cylinders, and temperature changes can influence the results. Use a defined test procedure and compare measurements against the applicable acceptance criteria. Avoid applying one universal pressure-drop limit to every coupling design. The required pressure stability depends on the equipment, test conditions, and manufacturer's specifications.
A quick coupling may leak even when its external body appears undamaged. Check whether the plug is fully inserted and the locking mechanism engages correctly. Confirm that the plug and socket belong to compatible coupling series. Incorrect mating parts may prevent the internal sealing surfaces from contacting properly.
Some designs include internal valves that close during disconnection. These require specific checks under the manufacturer's prescribed conditions. Do not disconnect a pressurized coupling unless its design and approved procedure explicitly permit it. After testing, verify the connection's engagement and sealing performance before returning the equipment to service.
Record the coupling location, connection type, test method, pressure, and observed results. Include any visible damage or suspected seal failure. After correcting the identified problem, repeat the original test under comparable conditions. This helps determine whether the corrective action resolved the leak.
A consistent testing record also supports preventive maintenance. If the same connection repeatedly develops leakage, investigate installation quality, compatibility, vibration, and operating conditions. Replacing individual components without identifying the underlying cause may lead to repeated downtime. A documented testing process helps maintenance teams make better repair and purchasing decisions.
Soapy water testing helps locate leakage at a specific connection. It is relatively simple and provides a visible indication when escaping air produces persistent bubbles. Pressure drop testing evaluates pressure retention across an isolated section. It can reveal a problem even when the exact leak location remains unknown.
Testing method | Main purpose | Key limitation |
|---|---|---|
Soapy water test | Locate accessible leaks | Requires suitable access and a compatible solution |
Audible inspection | Identify noticeable air leaks | Small leaks may remain undetected |
Pressure drop test | Assess pressure retention | Other leaks and temperature changes affect results |
Electronic detection | Locate difficult-to-detect leaks | Requires suitable equipment and correct operation |
These methods work best when used according to the inspection objective. Start with visual inspection and direct leak detection when the suspected location is accessible. Use pressure monitoring when the system shows unexplained pressure loss. Combine methods when the initial results remain inconclusive.
Manual inspection is suitable for routine checks and straightforward connections. It requires limited equipment and helps identify obvious damage or installation errors. Electronic leak detection may be more appropriate for large systems or noisy production environments. Its effectiveness depends on detector capability, leak conditions, and operator technique.
Neither method should replace the manufacturer's acceptance criteria. A maintenance team should select the method based on the required detection sensitivity and the consequences of an undetected leak. Electronic results should also be verified according to the equipment instructions.
Threaded couplings require attention to thread compatibility, sealing surfaces, and installation practices. Push-in fittings require checks for tube preparation, insertion depth, and sealing condition. Hose barb couplings require inspection of the hose interface and its retention method. Each design has different potential leakage points.

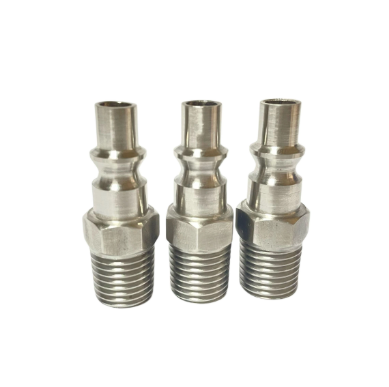

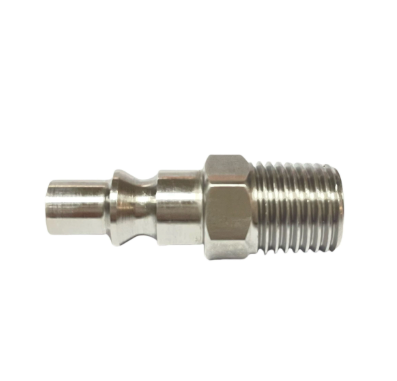

For example, Male 1/4 NPT Thread Brass and Steel Pneumatic Plug-In Nipples provide a product reference for examining threaded pneumatic connections. European Standard Brass Pneumatic Hose Barb Couplings and BSP Plugs offer another example involving hose barbs and BSP connections. These examples illustrate why buyers must verify connection standards before testing or replacing components.
Tip： Industrial pneumatic couplings and vehicle air-brake couplings are not interchangeable by default. Always follow the applicable product specifications and safety procedures.
Seals prevent compressed air from escaping through the coupling interface. Over time, wear, contamination, aging, or incompatible materials can reduce sealing performance. Repeated connection cycles may also damage internal sealing surfaces. Common symptoms include persistent bubbling during leak testing or recurring pressure loss after reconnection.
Inspect accessible seals according to the manufacturer's maintenance instructions. Replace damaged seals with compatible components of the correct size and material. Avoid using unapproved lubricants because they may affect seal performance. If the sealing surface is scratched or deformed, replacing the seal alone may not resolve the problem.
Threaded connections can leak when the wrong thread standard is selected or installation is incorrect. NPT and BSP threads have different designs and should not be treated as interchangeable. Inadequate sealing, damaged threads, and incorrect installation torque can also create leakage paths. Excessive tightening may damage the fitting or connected equipment.
Push-in fittings have different installation requirements. Tubes must be compatible, properly cut, and inserted to the specified depth. A damaged tube end may prevent the internal seal from working correctly. Inspect the tube and connection before assuming the coupling itself is defective.
Mechanical damage can affect both sealing and connection security. Cracks, corrosion, deformation, or damaged mating surfaces may allow air to escape. A worn locking mechanism can prevent the plug from engaging fully. These conditions may become more serious under vibration or repeated use.
Remove damaged components from service when their integrity cannot be confirmed. Do not attempt to repair cracked pressure-containing parts through improvised methods. Investigate whether repeated damage results from unsuitable materials, excessive mechanical loads, or incompatible connections.
If the coupling is compatible and undamaged, incorrect engagement may be the cause. Isolate the supply and release stored pressure before handling the connection. Disconnect the components only according to the approved procedure. Inspect the mating surfaces and reconnect them correctly. Confirm that the locking mechanism engages as intended.
Do not force incompatible plugs and sockets together. Check the coupling series, dimensions, and connection specifications first. After reconnection, conduct the prescribed leak test. If leakage continues, investigate the seals, threads, tubing, and internal valve rather than repeatedly reconnecting the parts.
Seal replacement may resolve leakage when the coupling body and sealing surfaces remain serviceable. Use the specified replacement seal and follow the manufacturer's disassembly instructions. Keep components clean during maintenance. Ensure that the replacement material suits the working medium, temperature, and operating conditions.
Some couplings are designed for field servicing, while others require complete assembly replacement. Do not dismantle a unit unless the manufacturer permits it. After maintenance, repeat the leakage test and confirm proper engagement. Record the replaced component to support future maintenance planning.
Replace the complete coupling when its body is cracked, its locking mechanism is defective, or its sealing surfaces are damaged beyond approved repair limits. Select a replacement based on pressure rating, thread standard, connection size, material, and compatibility. Consider the working temperature and operating environment as well.
For product evaluation, American Standard Brass or Steel Pneumatic Push-Lok Hose Barb Nipple Plugs provide a reference for comparing hose barb connection options. Confirm the actual specifications before purchasing. Product names alone do not establish interchangeability or performance.
Tip： When sourcing replacement couplings, request technical drawings and pressure ratings. Confirm the connection standard and seal compatibility before placing a bulk order.
Regular inspections help identify wear before it causes significant downtime. Prioritize high-use connections, frequently disconnected couplings, and critical pneumatic circuits. Inspection frequency should reflect operating conditions, manufacturer recommendations, and equipment risk. Record recurring leaks and component replacements to identify patterns.
During each inspection, check the coupling body, connection security, visible seals, and surrounding tubing. Use a suitable leak-detection method when signs of leakage appear. Consistent records help maintenance teams determine whether a component is failing prematurely or installation practices need improvement.
Dust, metal particles, moisture, and other contaminants can interfere with sealing. Keep plugs, sockets, and exposed connection surfaces clean during storage and maintenance. Use protective caps when appropriate. Follow the manufacturer's instructions for cleaning and lubrication.
Avoid using incompatible chemicals or lubricants. These may damage seals or contaminate the pneumatic system. Replace components that cannot be cleaned or restored to an acceptable condition. Proper handling helps reduce premature wear and unnecessary replacement.
Select couplings designed for the intended pressure, temperature, medium, and operating cycle. Confirm that every component meets the system requirements. Check thread standards, tubing dimensions, sealing materials, and connection compatibility before installation. Follow specified tightening and assembly procedures.
Do not assume that similar-looking couplings provide the same performance. Different designs may use different valve mechanisms, seal arrangements, and connection standards. Confirm the complete specification before approving a product for production use.
Replacement is appropriate when leakage continues after correct installation or approved seal replacement. Cracked bodies, damaged threads, defective locking mechanisms, and severely worn sealing surfaces are additional warning signs. A coupling that cannot maintain a secure connection should not remain in service.
Repeated leakage may also indicate a mismatch between the coupling and its operating environment. Review pressure, temperature, vibration, connection frequency, and media compatibility. Correcting these conditions can help prevent premature failure of the replacement component.
Compare the connection type, thread standard, dimensions, material, pressure rating, and sealing design. Confirm compatibility with the existing plug or socket. Consider the required connection and disconnection frequency. For industrial purchasing, request drawings, technical specifications, and relevant quality documentation from the supplier.
Where possible, evaluate samples under an approved test procedure before placing a large order. Check incoming products for dimensional consistency and visible defects. Establish acceptance criteria before inspection begins. These steps help reduce the risk of incompatible components entering production.
After repair or replacement, perform the prescribed leakage test again. Verify secure engagement and acceptable pressure retention. Check the complete affected section for other leakage sources. Document the test conditions and results before releasing the equipment.
Vehicle air-brake systems require particular care. Follow the applicable service requirements and manufacturer procedures before returning a vehicle to operation. Do not rely solely on a visual check or the absence of hissing. Safety-critical systems require the specified inspection and verification process.
Testing pneumatic quick coupling leakage helps prevent pressure loss and costly downtime. Regular inspections and proper repairs improve system reliability. Tianying company provides pneumatic couplings designed for different connection needs, helping buyers find suitable products for dependable performance.
A: Apply leak-detection solution and check for persistent bubbles. Pressure monitoring can also reveal leaks.
A: Damaged seals, loose threads, contamination, or improper connections often cause air leakage.
A: Yes. Reseat connections or replace compatible seals. Replace damaged couplings when necessary.
A: Replace it if leakage persists or the body, threads, or locking mechanism is damaged.
A: Inspect connections regularly, maintain clean sealing surfaces, and verify pressure and thread compatibility.
