Views: 0 Author: Site Editor Publish Time: 2025-06-18 Origin: Site
You use quick connect hose fittings by picking the right quick coupling, getting your hose ready, snapping the parts together, and checking for leaks. Always keep safety in mind and choose trusted brands like Tianying to prevent leaks and get a secure fit. Here are some common mistakes you can avoid:
Picking the wrong type of quick disconnect couplings for your job.
Not lining up the fittings straight when you connect them.
Tightening too much or too little.
Forgetting to secure hoses with clamps.
Bending hoses too much.
Skipping the leak test after you finish.
Pick the correct size and material for your quick connect hose fittings. This helps stop leaks and keeps things safe. - Clean your hose and check for any damage before you connect the fittings. - Attach the fittings straight and make sure they are tight. Always test for leaks before you use them. - Look for problems like leaks, hoses slipping, or hard-to-use connections. Fix these problems fast. - Use good brands like Tianying for fittings you can trust. They give expert help and fittings that last a long time.

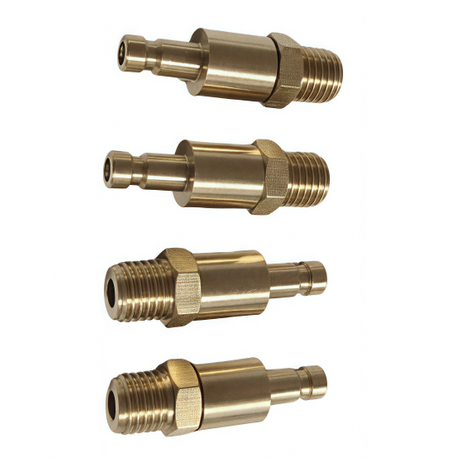

Quick coupling hose fittings make your life easier when you need to connect or disconnect hoses fast. You see these in many places, like your garden, a car repair shop, or even in big factories. Each quick coupling has two main parts: a male end (plug) and a female end (socket). When you push them together, they lock in place and create a tight seal. This stops leaks and keeps everything safe.
You will find different types of quick disconnect couplings for different jobs. Here’s a simple table to help you see the differences:
Coupling Type | Design Features | Typical Applications |
|---|---|---|
Push-to-Connect | Just push in to connect, no tools needed | Air tools, water filters, car fuel lines |
Threaded Couplings | Screw together, often with O-rings for sealing | Hydraulic systems, gas lines, heavy machines |
Bayonet Couplings | Twist and lock with a click | Medical devices, lighting, aerospace |
Cam and Groove | Use cam arms to lock quickly | Water transfer, farming, food factories |
Flat Face Couplings | Flat surface, easy to clean, less fluid loss | Hydraulic systems, marine, medicine |
You can also pick from different materials like steel, stainless steel, or brass. Each one works best for certain jobs. For example, brass is great for plumbing, while stainless steel is perfect for food or medicine.
Tianying offers a wide range of quick coupling products. You can find fittings for water, air, and hydraulic systems. Their products work with many well-known brands and meet high quality standards.
Let’s break down how quick disconnect couplings work:
Line up the male and female parts.
Push them together until you hear or feel a click. The locking mechanism holds them tight.
The valve inside opens, letting water, air, or oil flow.
When you want to disconnect, release the lock and pull them apart. The valve closes to stop leaks.
Here’s a quick look at the main parts and what they do:
Component | Function |
|---|---|
Body | Holds everything together and connects to hoses |
Valve Mechanism | Opens and closes to control flow and stop leaks |
O-Rings and Seals | Make sure nothing leaks out |
Locking Mechanism | Keeps the two ends locked together |
Connection Interface | The spot where the two parts join for a tight fit |
Tianying’s quick coupling fittings go through strict quality checks. They follow important safety and quality standards, so you can trust them for your projects.
Picking the right quick coupling for your hose can make your job much easier. You want to avoid leaks, wasted time, and safety problems. Here are some things you should check before you buy:
Material: Think about what will flow through your hose. Stainless steel works well for strong, high-pressure jobs and resists rust. Brass is tough and handles heat, so it’s great for water or air. Plastic is light and good for simple jobs, like a garden hose.
Size: Always match the fitting size to your hose. If the size is wrong, you might get leaks or the connection could fail. Use a quick coupling size chart to double-check.
Pressure Rating: Make sure the fitting can handle the highest pressure your system will reach.
Environment: Will your hose be outside in the sun or near chemicals? Pick a material that can handle those conditions.
Industry Needs: Some jobs, like farming or factories, need special features. Check if you need extra strength, heat resistance, or special safety standards.
Cost and Safety: Don’t just pick the cheapest option. A good fitting lasts longer and keeps you safe.
Here’s a quick look at common materials and what they’re good for:
Material | What Makes It Good |
|---|---|
Aluminum | Light, resists rust, affordable, but can scratch easily |
Brass | Strong, resists rust, handles heat, easy to use, popular for quick disconnect couplings |
Stainless Steel | Very strong, resists rust, great for high pressure and heat |
Plastic (PVC, PE, PP) | Light, good for water, not for high heat or pressure |
You want a quick coupling that fits your hose and works with your equipment. Some brands only fit their own products, but others, like Tianying, design fittings that work with many major systems. If you need quick connect hose fittings for garden hose, air compressor, or even hydraulic machines, Tianying has you covered.
Tianying’s quick couplings match up with well-known brands like DME, HASCO, and MISUMI. You can also ask for custom solutions if you have a special job. Their products go through strict quality checks, so you get a secure fit every time. If you want a universal quick connect hose fitting, Tianying is a smart choice.
Tip: Always check the compatibility chart or ask the supplier if you’re not sure your new fitting will work with your current system.
Getting ready for the installation of reusable hose couplings is the first step to a leak-free connection. Start by gathering all your tools and parts. You need your hose, the right quick coupling, and maybe a pair of gloves for safety. Check your hose for cracks or damage. If you see any, replace the hose before you continue.
Next, clean the hose ends. Dirt or old tape can stop the fitting from sealing tight. If your hose feels stiff, dip the end in warm water for a few seconds. This softens the material and makes it easier to slide on the fitting. Some people use a little bit of lubricant, like soapy water, to help the hose slip on. Just don’t use oil or grease unless the manufacturer says it’s okay.
Tip: Always double-check the size of your hose and fitting. A mismatch can cause leaks or even damage your equipment.
If you have questions about which fitting to use, Tianying’s technical support team can help you pick the best option for your job.
Now you’re ready for the installation of push-loc hose connections. Hold the hose steady and push the quick coupling into the hose end. Make sure you push it in straight. If you angle it, you might damage the hose or the fitting. You should feel or hear a click when the fitting locks in place.
For threaded quick disconnect couplings, twist the fitting onto the hose by hand. Don’t use tools to tighten unless the instructions say so. Over-tightening can crush the seal and cause leaks. Under-tightening can make the connection loose. Hand-tightening is usually enough for most quick coupling practices.
If your system uses clamps, slide the clamp over the hose before you attach the fitting. Once the fitting is in place, move the clamp up and tighten it with a screwdriver. This keeps the hose from slipping off under pressure.
Note: Always follow the best quick coupling practices. Line up the parts, push or twist them together, and check that everything feels secure.
Tianying’s products go through strict quality checks, so you can trust the connection to hold up under normal use.

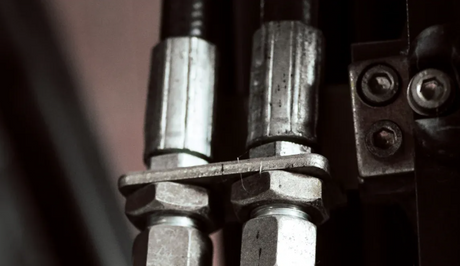

Testing for leaks is the last step in good quick coupling practices. Turn on the water, air, or hydraulic system slowly. Watch the connection point. If you see bubbles, drips, or hear a hissing sound, you have a leak.
If you find a leak, turn off the system right away. Disconnect the fitting and check for dirt, damage, or a loose seal. Clean the parts and try again. Sometimes, you just need to push the fitting in a little more or tighten the clamp.
Safety Check: Never skip the leak test. Even a small leak can cause big problems later.
Tianying stands behind their products with strong quality assurance. If you ever have trouble, their team can help you solve it fast.
By following these steps, you make sure your installation of reusable hose couplings goes smoothly. You get a secure, leak-free connection every time.
You might run into a few problems when using quick connect hose fittings. Here are some of the most common ones:
Leaks at the connection point
Hose slipping off the fitting
Difficulty connecting or disconnecting the fittings
Pressure drops or bursts in the system
Hose kinks, twists, or sharp bends
Fittings that do not match or fit tightly
Signs of wear like cracks, swelling, or blistering on the hose
Tip: Regular checks help you spot these issues early. If you see drips, hear hissing, or notice the hose feels weak, take action right away.
You can fix most quick coupling problems with a few simple steps. Here’s what you should do:
Check the Fit: Make sure you use the right size and type of fitting for your hose. If the fitting feels loose or too tight, double-check the size chart.
Inspect for Damage: Look for cracks, swelling, or worn-out seals. Replace damaged hoses or fittings as soon as you spot them.
Clean and Reconnect: Dirt or debris can stop a good seal. Clean the hose ends and fittings before you connect them.
Avoid Sharp Bends: Keep your hose straight and avoid tight curves. Use elbows or adapters if you need to change direction.
Control Pressure: Open and close valves slowly to prevent sudden pressure surges. This keeps your fittings safe.
Store Properly: Keep hoses in a cool, dry place away from sunlight. Cap the ends to keep out dirt.
Regular Maintenance: Set up a schedule to check your hoses and fittings. Look for leaks, kinks, or signs of wear.
Problem | Quick Fix |
|---|---|
Leak at connection | Re-seat fitting, check O-rings, retighten |
Hose slips off | Use proper clamps, check hose size |
Hard to connect | Clean parts, soften hose end, use lubricant |
Pressure drop/burst | Check for kinks, replace damaged hose |
Tianying’s after-sales support team can help you with any tricky problems. Their strict quality control means you get reliable parts every time. If you ever have questions, just reach out—they’re ready to help you keep your system running smoothly.
You can use quick connect hose fittings safely and get the best results by following a few simple steps:
Pick the right size and material for your job.
Prepare your hose and fittings by cleaning and checking for damage.
Connect everything tightly and test for leaks before use.
Tianying stands out with careful inspections, expert advice, and strong after-sales support. If you have questions, check the FAQ for quick answers about installation, leaks, and fitting types. Reliable fittings and good habits keep your system running smoothly!
You should feel a firm click or snap when you connect the fitting. Give it a gentle tug. If it stays in place and does not wiggle, you are good to go!
Yes, you can! Just make sure you pick fittings made for high temperatures. Brass or stainless steel fittings work best for hot water jobs.
First, turn off the water or air. Check for dirt or damage on the fitting and hose. Clean both ends. Reconnect and test again. If it still leaks, try a new O-ring or replace the fitting.
Yes! Tianying designs many quick couplings to fit with popular brands like DME, HASCO, and MISUMI. You can check the compatibility chart or ask their support team if you are not sure.
