In injection molding and die casting production, mold temperature control has a direct influence on cycle time, part quality, dimensional stability, surface finish, and production efficiency. Cooling water must move through the mold quickly, safely, and reliably. For this reason, the American Standard Quick Coupling has become an important connection component in many mold cooling systems.
An American Standard Quick Coupling is designed to connect and disconnect cooling water lines, oil lines, and temperature control circuits without complicated tools. It helps operators change molds faster, reduce setup time, simplify maintenance, and keep the cooling circuit organized. Although the component is small, the correct American Standard Quick Coupling can improve the stability of the entire mold cooling system.
Many buyers search for a Quick Coupling only by size or appearance, but mold cooling systems require more careful selection. The American Standard Quick Coupling must match the correct profile, thread type, nominal bore, material, O-ring, pressure range, temperature range, and installation direction. If the wrong Quick Coupling is selected, the mold may suffer from water leakage, low cooling efficiency, poor temperature balance, or delayed production.
This guide explains how the American Standard Quick Coupling works in mold cooling systems, how it compares with other connection options, how to select the right type, and what buyers should check before placing an order.
An American Standard Quick Coupling is a quick-release connector commonly used in mold cooling systems, injection molds, die casting molds, water circulation systems, and temperature control equipment. It usually consists of a socket and a plug. When the two parts are connected, cooling water or another medium can pass through the circuit. When they are disconnected, the operator can remove or replace the mold faster.
The American Standard Quick Coupling is often used in American-style mold systems and DME-compatible cooling connector applications. It is widely used for plastic injection molds, die casting dies, hot runner cooling, mold temperature control, and water manifold connections.
A typical American Standard Quick Coupling may be used with:
Mold cooling water lines
Injection mold temperature control circuits
Die casting mold cooling channels
Water manifolds and hose assemblies
Mold temperature controllers
Heating and cooling circulation systems
Maintenance and mold changeover stations
The purpose of the American Standard Quick Coupling is simple: make the cooling circuit easier to connect, disconnect, inspect, and maintain. However, the performance depends heavily on correct product selection.
Mold cooling is one of the most important parts of injection molding. After molten plastic enters the mold cavity, the part must cool and solidify before ejection. If the mold temperature is unstable, the finished part may have warpage, sink marks, poor surface quality, dimensional deviation, or longer cycle time.
A Quick Coupling supports the cooling process by creating a fast and secure connection between the mold and the cooling water supply. If the Quick Coupling leaks, restricts flow, or disconnects poorly, the cooling system cannot perform properly.
A reliable American Standard Quick Coupling helps mold cooling systems in several ways:
| Cooling System Need | How American Standard Quick Coupling Helps |
|---|---|
| Fast mold setup | Allows quick connection and disconnection of cooling lines |
| Stable cooling flow | Helps maintain consistent water circulation |
| Lower downtime | Reduces time spent on hose removal and reconnection |
| Cleaner operation | Valved options reduce water loss during disconnection |
| Easier maintenance | Standardized sockets and plugs simplify replacement |
| Better safety | Secure locking reduces accidental disconnection |
| Organized circuits | Different sizes and structures support clearer system layout |
For high-volume molding factories, even small improvements in mold changeover and cooling stability can create measurable savings. This is why the American Standard Quick Coupling is not only a fitting, but also part of the factory’s production efficiency system.
American Standard Quick Coupling products are commonly available in different series and structures. The correct choice depends on mold design, cooling flow requirement, thread type, installation space, and whether leakage control is needed.
Common American Standard Quick Coupling types include:
| Type | Main Feature | Typical Use |
| Straight American Standard Quick Coupling | Simple inline connection | General mold cooling water lines |

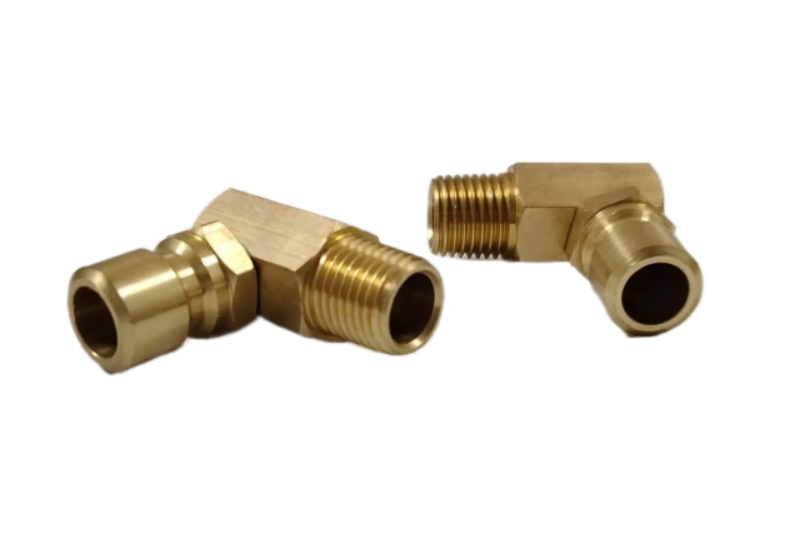

| 90-degree American Standard Quick Coupling | Elbow structure for limited space | Compact mold layouts or side connections |
| Male thread American Standard Quick Coupling | External thread connection | Mold plates, manifolds, or threaded ports |
| Female thread American Standard Quick Coupling | Internal thread connection | Hose fittings or mating threaded parts |
| Hose tail American Standard Quick Coupling | Connects directly to hose | Cooling water hose assemblies |
| Open-flow American Standard Quick Coupling | No internal shut-off valve | Simple water circulation systems |
| Valved American Standard Quick Coupling | Shut-off function during disconnection | Frequent mold changeover or cleaner operation |
In many mold workshops, several American Standard Quick Coupling types are used together. For example, a mold may require straight connectors on one side and 90-degree connectors on another side because of space restrictions. A water manifold may use male thread Quick Coupling sockets, while hose assemblies may use hose tail plugs.
One of the most important decisions is whether to choose an open-flow American Standard Quick Coupling or a valved American Standard Quick Coupling.
An open-flow American Standard Quick Coupling allows water or oil to pass through directly. It has a simple structure and is often selected for basic mold cooling systems. When the connector is disconnected, some fluid may drain from the line. This type is suitable when the system is simple and leakage during disconnection is acceptable.
A valved American Standard Quick Coupling includes an internal shut-off mechanism. When disconnected, the valve helps reduce fluid loss. This type is useful for frequent mold changes, cleaner workshops, hot water circuits, or applications where coolant waste should be minimized.
| Comparison Item | Open-Flow American Standard Quick Coupling | Valved American Standard Quick Coupling |
| Internal structure | Simple flow path | Built-in shut-off valve |
| Leakage control | Fluid may drain after disconnection | Helps reduce fluid loss |
| Flow performance | Usually direct and efficient | May require correct sizing to avoid pressure drop |
| Cost | Generally lower | Usually higher |
| Best use | Standard water cooling circuits | Frequent mold changeover and cleaner operation |
| Maintenance focus | Check sealing and thread | Check sealing, valve movement, and locking |
For many factories, both types are useful. Open-flow American Standard Quick Coupling products can be used for stable production molds, while valved American Standard Quick Coupling products can be used for molds that are changed often or connected to temperature control equipment.
American Standard Quick Coupling products are often grouped by series, such as 200 series, 300 series, and 500 series. These series help buyers select the correct size and flow capacity for different mold cooling requirements.
A smaller American Standard Quick Coupling may be used for compact cooling circuits, small molds, or lower-flow water lines. A larger American Standard Quick Coupling may be selected for molds with higher heat load, larger cooling channels, or higher circulation demand.
When selecting size, buyers should consider:
Cooling channel diameter
Required water flow rate
Hose inner diameter
Mold temperature control requirement
Pressure drop across the Quick Coupling
Number of cooling circuits
Mold size and cavity layout
Available installation space
A common mistake is selecting a Quick Coupling only because it fits the thread. Fit is important, but flow is equally important. If the American Standard Quick Coupling is too small, it may restrict water flow and reduce cooling efficiency. If it is too large, it may be difficult to install in a compact mold area.
Thread selection is one of the most important technical details when purchasing an American Standard Quick Coupling. In mold cooling systems, PT and NPT threads may both appear depending on the system design, region, and existing mold components.
A Quick Coupling may look correct from the outside, but if the thread does not match, the part may not install properly. Thread mismatch can cause leakage, weak sealing, damaged mold ports, or wasted installation time.
Before selecting an American Standard Quick Coupling, buyers should confirm:
| Thread Detail | Why It Matters |
| Thread standard | PT, NPT, metric, or other thread types are not always interchangeable |
| Thread size | Must match mold port, manifold, or hose fitting |
| Male or female thread | Determines connection direction |
| Tapered or parallel thread | Affects sealing method |
| Sealing method | May require thread sealant, tape, O-ring, or sealing surface |
| Old sample or drawing | Helps supplier identify the correct Quick Coupling faster |
For replacement orders, it is best to provide a sample, drawing, clear photo, or old part number. This helps the supplier confirm the correct American Standard Quick Coupling profile and thread type.
Material selection affects durability, corrosion resistance, sealing life, and overall performance. In mold cooling applications, brass and copper alloy are common materials for American Standard Quick Coupling products. These materials are widely used because they offer good machinability, stable performance, and practical corrosion resistance in many water cooling applications.
Some applications may require stainless steel or special materials, especially when the medium is aggressive, the working environment is harsh, or the system has higher corrosion risk.
The sealing material is also important. O-rings and seals must match the medium, temperature, and pressure. A Quick Coupling used with normal cooling water may not need the same seal as a Quick Coupling used with hot water, oil, glycol, or special temperature control fluid.
Key sealing factors include:
O-ring material
Temperature resistance
Medium compatibility
Compression set resistance
Replacement convenience
Long-term leakage performance
For mold cooling systems, leakage does not only waste water. It can also affect mold temperature, create safety risks, damage surrounding equipment, and slow down production. Therefore, American Standard Quick Coupling material and sealing quality should be checked carefully.
An American Standard Quick Coupling used in mold cooling must meet the working pressure and temperature requirements of the system. Many mold water circuits operate at relatively moderate pressure, but the Quick Coupling still needs enough safety margin.
Temperature is also important. Mold cooling systems may use normal water, hot water, oil, or temperature control fluid. In hot runner molds, die casting molds, and high-temperature production environments, the Quick Coupling must be suitable for elevated temperature conditions.
Before purchasing, buyers should check:
| Parameter | Selection Reason |
| Working pressure | Prevents leakage or accidental failure |
| Burst pressure | Shows safety margin under abnormal conditions |
| Working temperature | Ensures seal and body material can withstand the system |
| Medium | Water, oil, air, or glycol may require different seals |
| Flow rate | Supports stable cooling performance |
| Pressure drop | Avoids excessive resistance in the cooling circuit |
A good American Standard Quick Coupling should not only connect quickly. It should also perform reliably under actual operating conditions.
Quick mold changeover is becoming more important as factories move toward flexible production, shorter production runs, and faster delivery schedules. In many injection molding workshops, mold change time directly affects machine utilization.
An American Standard Quick Coupling helps reduce mold changeover time by allowing cooling lines to be removed and reconnected quickly. When cooling circuits are standardized, operators can work faster and make fewer connection errors.
For quick mold changeover, buyers should consider:
Valved American Standard Quick Coupling for reduced leakage
Color marking or circuit labeling for inlet and outlet lines
Standardized hose lengths and connector sizes
90-degree Quick Coupling for limited installation space
Easy-grip socket sleeve design
Durable locking structure for repeated operation
Spare parts inventory for fast replacement
A well-designed Quick Coupling system can support SMED-style production improvement. It helps reduce wasted time during setup and makes mold changes more predictable.
Cooling efficiency depends on many factors, including mold channel design, water temperature, flow rate, thermal conductivity, mold material, and temperature controller performance. The Quick Coupling is only one part of the system, but it can still influence flow and stability.
If the American Standard Quick Coupling has a suitable bore size and smooth flow path, it helps maintain water circulation. If the Quick Coupling is too small, clogged, damaged, or incorrectly selected, it may increase pressure drop and reduce cooling performance.
Possible cooling problems caused by poor Quick Coupling selection include:
Uneven mold temperature
Longer cooling time
Higher scrap rate
Unstable part dimensions
Water leakage near the mold
Hose bending due to wrong connector angle
Increased maintenance workload
For this reason, the American Standard Quick Coupling should be selected together with the cooling channel, hose, manifold, and temperature control system. It should not be treated as an isolated accessory.
The injection molding industry is moving toward faster production, better energy efficiency, smarter process control, and more sustainable manufacturing. These trends increase the importance of reliable cooling connections.
One major trend is conformal cooling. Conformal cooling channels are designed to follow the shape of the molded part more closely, improving temperature uniformity and reducing cooling time. In these systems, the connection between the mold and external cooling equipment must remain stable. A correctly selected American Standard Quick Coupling helps support consistent water supply and easy maintenance.
Another trend is intelligent temperature control. More factories are using sensors, process monitoring, and digital production systems to improve part quality. However, smart monitoring cannot solve a physical connection problem. If the Quick Coupling leaks or restricts flow, the cooling data may become unstable. Therefore, reliable Quick Coupling selection remains important even in automated factories.
Sustainability is also driving better cooling management. A leak-resistant American Standard Quick Coupling can reduce coolant waste, water loss, cleanup work, and unnecessary downtime. A durable Quick Coupling can also reduce replacement frequency and support more efficient production.
Quick changeover is another important trend. As production batches become smaller and delivery schedules become tighter, factories need faster setup processes. Standardized American Standard Quick Coupling systems help operators change molds quickly and reduce mistakes.
Mold cooling lines can be connected in several ways. Some systems use threaded fittings, hose clamps, permanent connections, or different regional Quick Coupling standards. The American Standard Quick Coupling offers a balance of speed, standardization, and maintainability.
| Connection Method | Advantage | Limitation | Best Use |
| Threaded fitting | Secure and simple | Slower to disconnect | Fixed connections with rare changes |
| Hose clamp connection | Low cost | Less convenient for frequent mold change | Basic temporary setups |
| Permanent pipe connection | Stable and strong | Not flexible | Fixed cooling systems |
| General Quick Coupling | Fast connection | May not match mold standard | Non-standard fluid systems |
| American Standard Quick Coupling | Fast, standardized, suitable for American-style mold cooling | Must match correct profile and thread | Mold cooling, die casting, injection molding |
For mold systems that require frequent connection and disconnection, the American Standard Quick Coupling is usually more efficient than a traditional threaded connection.
Before placing an order, buyers should collect the following information. This checklist can reduce mistakes and help the supplier recommend the correct American Standard Quick Coupling.
| Required Information | Example or Note |
| Coupling standard | American Standard Quick Coupling |
| Series | 200 series, 300 series, 500 series, or sample-based confirmation |
| Structure | Open-flow or valved |
| Connection type | Socket, plug, male thread, female thread, hose tail |
| Thread type | PT, NPT, or other required thread |
| Thread size | Confirm by drawing, sample, or measurement |
| Bore size | Match flow requirement |
| Material | Brass, copper alloy, stainless steel, or custom material |
| Seal material | Based on water, oil, glycol, or temperature |
| Working pressure | Must match system conditions |
| Working temperature | Must match cooling or heating circuit |
| Installation direction | Straight, 45-degree, or 90-degree |
| Application | Injection mold, die casting mold, water manifold, or temperature controller |
Providing this information helps avoid wrong Quick Coupling selection and speeds up quotation.
The first mistake is buying by appearance only. Many Quick Coupling products look similar, but the internal profile and locking structure may be different. A similar-looking connector may not work with an existing socket or plug.
The second mistake is ignoring thread type. An American Standard Quick Coupling may need PT or NPT thread depending on the system. Guessing the thread can lead to leakage or installation failure.
The third mistake is selecting the wrong structure. Open-flow and valved American Standard Quick Coupling products serve different needs. Choosing the wrong type may cause unnecessary water loss or flow restriction.
The fourth mistake is not checking flow capacity. If the Quick Coupling is too small for the cooling circuit, it may reduce water flow and affect mold temperature.
The fifth mistake is not standardizing spare parts. When a workshop uses many connector types without clear rules, operators may waste time searching for the correct Quick Coupling during mold changeover.
Proper maintenance can extend the service life of an American Standard Quick Coupling and reduce unexpected downtime. Since mold cooling circuits often operate in wet, hot, and busy production environments, regular inspection is important.
Useful maintenance practices include:
Check sockets and plugs for wear or deformation
Inspect O-rings and seals regularly
Remove dirt, scale, or debris from the connection area
Avoid forcing mismatched Quick Coupling parts together
Replace damaged plugs or sockets early
Use the correct thread sealing method
Keep spare Quick Coupling parts organized by series and size
Label inlet and outlet circuits clearly
Train operators to connect and disconnect properly
A damaged or worn American Standard Quick Coupling should not be ignored. Small leakage can become a larger cooling problem and may affect part quality or machine safety.
American Standard Quick Coupling products are suitable for many mold and industrial cooling applications.
| Application | Recommended Quick Coupling Direction |
| Standard injection mold cooling | Open-flow American Standard Quick Coupling |
| Frequent mold changeover | Valved American Standard Quick Coupling |
| Compact mold layout | 90-degree American Standard Quick Coupling |
| Hose connection | Hose tail American Standard Quick Coupling |
| Mold manifold connection | Male or female thread American Standard Quick Coupling |
| Die casting cooling circuit | High-temperature suitable American Standard Quick Coupling |
| Water or oil circulation | Material and seal selected by medium |
| DME-style replacement | American Standard Quick Coupling confirmed by series and profile |
The best selection depends on the mold design and production environment. For new projects, it is helpful to standardize the Quick Coupling type early. For replacement projects, the existing plug, socket, thread, and series should be confirmed first.
The American Standard Quick Coupling is an important component in mold cooling systems, injection molds, die casting molds, water circulation lines, and temperature control applications. It allows operators to connect and disconnect cooling circuits quickly, helping reduce mold changeover time and improve production efficiency.
A correct American Standard Quick Coupling selection should consider more than the product name. Buyers need to confirm the series, structure, thread type, bore size, material, seal, pressure, temperature, medium, and installation angle. Open-flow American Standard Quick Coupling products are suitable for simple and efficient water circulation, while valved American Standard Quick Coupling products are better for cleaner operation and frequent disconnection.
As injection molding moves toward quick changeover, smarter production, conformal cooling, and sustainable manufacturing, reliable cooling connections become even more important. A well-selected American Standard Quick Coupling can support stable mold temperature, reduce leakage, simplify maintenance, and improve overall production reliability.
For buyers, the best approach is to provide drawings, samples, photos, or technical requirements before ordering. For mold factories, standardizing the American Standard Quick Coupling system can reduce downtime, improve maintenance efficiency, and make mold cooling systems easier to manage.
The socket is usually the receiving side, while the plug is inserted into the socket to complete the connection. A complete American Standard Quick Coupling system needs a matching socket and plug from the same series and profile.
Some American Standard Quick Coupling products can be used for water or oil circulation, but the material, seal, pressure rating, and temperature range must be confirmed first. The medium should always match the supplier’s technical recommendation.
The correct series depends on the existing mold system, socket and plug profile, bore size, flow requirement, and old connector standard. If the system is a replacement project, the safest method is to provide a sample or drawing for confirmation.
Leakage may be caused by thread mismatch, damaged O-ring, wrong seal material, worn plug, poor locking, excessive pressure, or incorrect installation. The thread type and sealing method should be checked first.
A 90-degree American Standard Quick Coupling is better when installation space is limited or when a straight connector would bend the hose too sharply. A straight type is suitable for simple inline connections with enough space.
