Brass Hose Fittings in Injection Molding Machines: Enhancing Flow, Safety, And Maintenance Efficiency

Injection molding machines depend heavily on efficient fluid and air systems to ensure smooth operation and high-quality output. Brass hose fittings play a vital role in these systems by providing secure, reliable connections that maintain stable cooling and pressure. These fittings are essential components that help prevent leaks, simplify maintenance, and improve overall machine performance. This article focuses exclusively on brass hose fittings used in injection molding machines, exploring their functions, advantages, types, installation, and maintenance benefits.



The Role of Hose Fittings in Injection Molding Machines

Injection molding involves complex processes where controlling mold temperature and machine operations is crucial. Coolant lines circulate water or special cooling fluids through molds to manage temperature, preventing overheating and ensuring dimensional accuracy of molded parts. Pneumatic controls use compressed air to activate valves, cylinders, and sensors, while hydraulic units circulate oil to power mechanical movements.

Hose fittings are the connectors that link hoses to machine components, enabling fluid and air flow while maintaining pressure integrity. In injection molding, these fittings must withstand frequent thermal cycles, pressure variations, and exposure to chemicals used in mold release and cleaning. Because hoses and fittings undergo wear and tear, quick and leak-proof replacement is often necessary to avoid costly machine downtime.

Brass hose fittings provide the durability and reliability needed for these critical connections. Their design ensures tight seals on hoses, reducing the risk of leaks that can damage equipment or halt production. The ability to swiftly disconnect and reconnect hoses using specific brass fittings also speeds up maintenance and mold changeovers.



Why Brass Hose Fittings Are Ideal for Injection Molding

The choice of brass as the material for hose fittings in injection molding machines is based on its excellent physical and chemical properties:

Heat Resistance: Injection molding machines operate under elevated temperatures. Brass maintains its mechanical strength and shape even when exposed to hot water, hydraulic oil, or air streams, unlike plastic fittings which may deform or crack.

Corrosion Resistance: The humid environment inside molding facilities and exposure to cooling fluids and mold release chemicals can corrode lesser metals. Brass resists rust and corrosion, greatly extending fitting service life and reliability.

Secure Grip and Leak Prevention: Brass hose fittings often feature barbed designs that firmly hold flexible hoses like PVC or rubber. This secure grip prevents hoses from slipping off due to vibration or pressure changes, maintaining leak-proof connections.

Chemical Compatibility: Brass fittings are inert to most mold release agents and cooling fluids, ensuring no adverse reactions that might contaminate molded parts or degrade hoses.

Mechanical Durability: Brass withstands mechanical stresses such as bending, twisting, or machine vibrations, which are common in injection molding setups.



Common Types of Brass Hose Fittings Used in Injection Molding

Different brass hose fittings cater to distinct functions within the injection molding process:

Barb Nipples: Simple yet effective, these fittings connect coolant and air hoses to machine ports. Their barbed shape provides a tight fit with hoses, critical for maintaining steady coolant flow or compressed air supply.

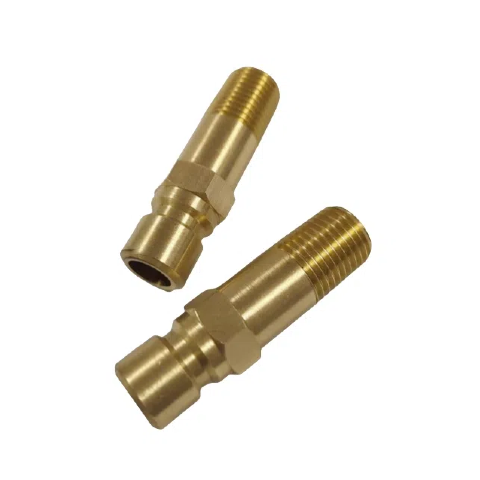

Quick-Connect Fittings: These allow operators to rapidly disconnect and reconnect hoses during mold changeovers, significantly reducing downtime. Quick-connect brass fittings are designed for repeated use without compromising seal integrity.

Threaded-to-Barb Connectors: These fittings combine threaded ends to attach securely to machine parts like oil reservoirs or pressure gauges, with barbed ends connecting to hoses. This hybrid design offers flexibility and reliable sealing in hydraulic oil lines or instrumentation.

Reducers and Adaptors: To connect hoses of varying sizes or different thread types, brass reducers and adaptors are essential. They enable seamless integration of hoses into the complex piping systems of molding machines.



Installation Tips for Brass Hose Fittings

Proper installation enhances the effectiveness and durability of brass hose fittings in injection molding machines:

Hose Size Matching: Select fittings that match the hose inner diameter precisely. The hose should be pushed fully over the barb without overstretching or leaving gaps to ensure airtight, watertight connections.

Clamping: Using suitable clamps is crucial. Worm gear clamps provide adjustable pressure, spring clamps accommodate hose expansion and contraction, and double band clamps distribute force evenly to prevent hose damage.

Insertion Depth: Proper insertion ensures that hoses cover the entire barb length, avoiding leaks or hose slippage during pressure cycles.

Avoid Over-Tightening: Excessive clamp pressure can damage hoses or fittings. Tighten clamps enough to secure but not deform the hose.

Consider Thermal Expansion: Install fittings in locations where hoses experience minimal bending or thermal stress to prolong life.



Enhancing Maintenance and Uptime with Brass Hose Fittings

Brass hose fittings contribute significantly to reducing maintenance time and increasing machine uptime:

Ease of Inspection and Replacement: Unlike welded or crimped fittings, brass hose fittings can be removed and reinstalled without specialized equipment. This flexibility accelerates troubleshooting and part replacement.

Standardization: Using standardized brass fittings across machines simplifies spare parts inventory management. This reduces procurement complexity and shortens downtime during repairs.

Leak Reduction: Reliable brass fittings minimize the risk of leaks that can cause hydraulic oil spills or coolant loss, both of which disrupt machine operation and safety.

Durability: The long service life of brass fittings reduces the frequency of replacements, lowering maintenance costs.



Selection Criteria for Injection Molding Environments

Choosing the right brass hose fittings requires careful consideration of injection molding machine requirements:

Pressure Ratings: Ensure fittings are rated for the machine’s maximum cycle pressure to avoid blowouts or leaks.

Hose Material and Size: Compatibility with hose type (PVC, rubber, etc.) and diameter ensures optimal sealing and durability.

Installation Location: Fittings near heat sources or moving parts should be designed to withstand additional thermal or mechanical stress.

Chemical Exposure: Select fittings compatible with the fluids and agents used to avoid corrosion or degradation.



Conclusion

Brass hose fittings are indispensable for maintaining stable fluid and air connections in injection molding machines. Their excellent heat and corrosion resistance, secure hose grip, and ease of maintenance make them the preferred solution for coolant, pneumatic, and hydraulic lines. By choosing high-quality brass fittings, manufacturers can enhance process stability, reduce downtime, and extend equipment life.

Dongguan Tianying Mold Fitting Limited offers a wide range of premium brass fittings—including hex nipples, adaptors, reducers, and hose barb nipples—tailored for injection molding applications. With nearly two decades of experience and a robust supply chain, we are committed to delivering products that meet your quality and performance needs.

Contact us today to learn how our brass hose fittings can improve your injection molding operations and maintenance efficiency.
