Swapping molds in die casting is often one of the biggest productivity bottlenecks on the shop floor. Complex cooling lines, time-consuming disconnections, and safety concerns during hot fluid handling make each changeover a challenge. The quick coupler addresses these problems head-on. By allowing fast and secure disconnection of mold cooling circuits, the quick coupler helps manufacturers reduce downtime, maintain cleaner work environments, and improve operator safety. For any die casting facility aiming to streamline mold swaps without compromising precision, this connector is more than just a convenience—it’s a smart investment.
Quick disconnect couplers come in several structural types, each suited to specific operational challenges.
Flat-face couplers are ideal for clean environments. Their design minimizes air and dirt ingress, and they’re easy to wipe clean—making them particularly useful in high-pressure or high-temperature mold cooling systems. Valve-type couplers use internal spring-loaded valves to shut off flow when disconnected, which is especially useful when dealing with hot or hazardous fluids. Threaded couplers, often made of brass or stainless steel, provide robust and vibration-resistant connections, typically used when shock resistance and sealing strength are key concerns.
Understanding which type suits your application is critical. For die casting environments where mold changes are frequent and clean operation is essential, flat-face designs are often the best solution.

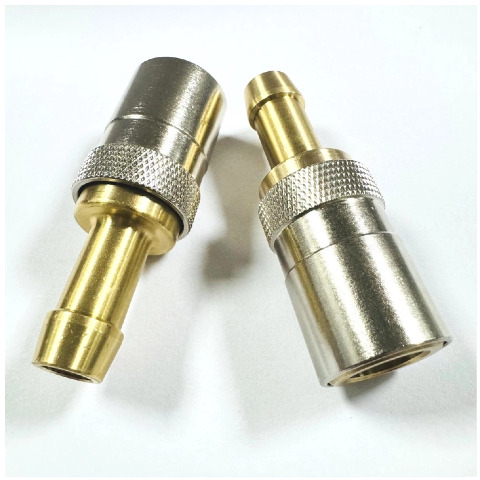

Each quick coupler system includes a male and a female half. These connect with a push-to-lock or twist-to-lock action and disconnect just as easily. During disconnection, internal valves automatically close to seal off fluid flow. This is vital in mold cooling systems where high-pressure water or oil could otherwise escape during changeover. This automatic shutoff not only ensures worker safety but also helps preserve system pressure, improving mold temperature consistency on startup.
Moreover, the ability to reliably seal both sides of the connection during disconnection minimizes the risk of spills and contamination—particularly important in keeping surrounding equipment clean and reducing maintenance needs.
One of the most significant advantages of quick couplers is their ability to dramatically shorten mold changeover times. In traditional setups, mold disconnection involves manually loosening hose clamps, draining coolant, wiping connectors, and reattaching lines—often a process that takes 30 minutes or more. With a quick coupler system, this process can be completed in under 10 minutes. This shift enables the implementation of SMED strategies, a lean manufacturing principle that improves flexibility and allows smaller batch production without excessive downtime.
By reducing downtime per mold change, plants can increase total daily output or introduce more mold variations per shift—enhancing both productivity and versatility.
Safety and cleanliness are key concerns in any industrial environment. When coolant hoses are manually disconnected, there’s a high risk of fluid leakage—especially with pressurized systems. These spills can cause slippery work surfaces, pose burn hazards, and damage sensitive equipment.
Quick disconnect couplers solve this issue with built-in sealing valves that shut off fluid flow before the connection is fully opened. This not only protects the operator but also keeps floors and equipment dry, helping maintain a safer and more professional work environment.
Contaminants in the mold cooling system can lead to blockages, corrosion, and poor cooling performance. Flat-face couplers provide a flush connection surface that prevents dust, oils, and metal particles from entering the system. These couplers are also built to handle high-pressure fluids, often up to 300 bar or more, ensuring reliable operation even in extreme conditions.
In applications where reliability and consistency are essential, flat-face couplers deliver outstanding performance. Their resistance to pressure drops, temperature spikes, and mechanical vibration makes them a preferred choice for high-speed, high-volume die casting operations.
Choosing the right quick coupler begins with matching pressure ratings. Each system should be evaluated for its maximum operating pressure as well as its potential peak pressures during flow surges. Quick couplers are available with wide-ranging pressure and burst safety ratings to match the needs of different cooling media—whether water, oil, or glycol mixtures. Always choose a coupler with a margin above your system's maximum pressure to ensure long-term durability and safety.
Flat-face couplers are designed to minimize internal dead zones and surface traps where fluid or debris could collect. This makes them far easier to clean and maintain. Poppet-type couplers, while compact, often retain more fluid and can be more prone to contamination. The choice depends on your system’s tolerance for residue and the ease of cleaning between batches or molds.
In high-pressure applications or in production environments with high hygiene standards, flat-face designs are clearly advantageous.
Modern die casting molds often include multiple cooling zones. Rather than connecting individual lines manually, multi-coupling modules allow operators to attach all circuits simultaneously through a single motion. These modular couplers save time, reduce connection errors, and make mold changeovers more consistent. Modules can also include color-coded or keyed couplings to prevent cross-connection of circuits, a feature that reduces training time and human error.
When selecting a quick coupler, it’s important to consider the entire range of your operating environment:
Pressure: Match the coupler’s max working pressure with system needs.
Temperature: Choose seal materials compatible with coolant temperature. For example, Viton seals offer high heat resistance, while EPDM works better with water-based coolants.
Material: Brass is corrosion-resistant and cost-effective. Stainless steel offers enhanced durability for harsh conditions, while aluminum provides weight savings for portable systems.
Ensure that the material and seal choices also align with chemical compatibility—especially in systems using treated or synthetic coolants.
Quick couplers should be installed in locations that are easily accessible and logically arranged for operators. Consider grouping cooling circuits in a consistent layout to streamline operations. Some manufacturers mount quick coupler panels directly onto mold bases, while others use central quick-change stations with manifolds.
Standardizing your coupler layout can also simplify training and improve changeover repeatability across shifts.
To ensure long-term performance, inspect quick couplers regularly for signs of wear, leakage, or reduced responsiveness. Seals, especially in high-temperature environments, may degrade over time and should be replaced on a preventive schedule—every 6 months to a year depending on use frequency. Keeping seal replacement kits on hand can eliminate downtime during unscheduled maintenance.
Cleaning the coupler surface regularly, especially before reconnection, prevents dirt or particles from entering the mold circuit and protects cooling performance.
The quick coupler has become a vital component for efficient and safe die casting mold changes. It simplifies disconnection of cooling circuits, reduces fluid spills, supports SMED practices, and enables cleaner, more precise manufacturing. By investing in high-quality quick disconnect couplers designed specifically for die casting, manufacturers can boost productivity, reduce errors, and maintain safer working conditions.
At Dongguan Tianying Mold Fitting Limited, we offer a complete range of quick disconncet coupler solutions tailored for die casting environments. With nearly two decades of industry expertise, a strong R&D and manufacturing team, and strict quality control systems, our quick couplers deliver the reliability and performance today’s factories demand. Let us help you optimize your production line—contact us today to learn more about our quick coupler options.
