Mismatched couplings do not just leak. They cause catastrophic pressure drops, system contamination, and unplanned downtime. At the decision stage, selecting the right hydraulic quick coupling requires moving beyond basic thread matching. You must systematically evaluate dynamic pressure spikes, flow velocities, and valve shut-off mechanics. Ignoring these variables introduces severe operational hazards. A poor choice jeopardizes your entire hydraulic circuit.
This guide breaks down how to specify couplings accurately. We base these recommendations on exact pressure requirements, valve architectures, and operating environments. You will learn how to balance surge pressure thresholds against material compatibility limits. The following sections provide a clear framework. They help you ensure long-term system reliability and strict safety compliance.
Valve Selection Dictates Performance: Flat-face, poppet, and screw-to-connect valves serve distinct operational requirements regarding fluid loss, flow restriction, and connection under pressure.
Pressure is Dynamic: Specifying a high pressure quick coupling requires calculating surge pressures and continuous vibration, not just static operating pressure.
Material Compatibility is Non-Negotiable: O-ring material and housing composition (e.g., carbon steel vs. stainless) must align with the specific hydraulic fluid and environmental corrosiveness.
Standardization Matters: Utilizing the STAMPED framework ensures all variables are accounted for before procurement.
Engineering teams often view couplings as simple commodities. This mindset creates hidden operational costs. Under-speccing components leads to premature failure. It generates significant fluid waste and introduces severe safety hazards to operators. Conversely, over-speccing creates unnecessary capital expenditure. It adds unwarranted weight to mobile equipment. Finding the technical middle ground requires empirical data.
A successful deployment achieves specific, measurable targets. Consider these baseline criteria for high-performance circuits:
Robust Safety Margins: The system maintains a 4:1 safety factor, comparing burst pressure directly to maximum operating pressure.
Contamination Prevention: The connection process results in zero fluid aeration or environmental leakage.
Standardized Compliance: The selected components meet universally recognized guidelines, such as ISO 16028 standards.
We must acknowledge an operational reality. No coupling remains completely immune to mechanical wear. Repeated connection cycles inevitably degrade internal seals. Fluid velocity continuously erodes valve seats. Your primary goal is predictable lifecycle management. You want to accurately forecast replacement intervals while minimizing the baseline pressure drop (ΔP). System efficiency relies on keeping this pressure drop as low as possible. Every psi lost across a poorly designed valve turns directly into unwanted heat. This thermal load degrades fluid viscosity. It forces cooling systems into overdrive.
Valve architecture dictates how your fluid power system breathes. Different designs solve entirely different mechanical problems. You must align the valve type directly to your environmental conditions and tolerance for fluid loss.
These valves dominate high-contamination environments like construction and agriculture. Their primary advantage lies in their physical profile. Operators can easily wipe the mating surfaces clean before connection. This "dry break" capability ensures minimal fluid spillage. It drastically reduces air inclusion during the mating process. Flat face designs keep dirt out of sensitive hydraulic circuits. The internal valving slides seamlessly together.
Poppet valves serve as the workhorse for general-purpose industrial applications. They rely on a hardened steel ball or machined cone. They seat against a captive elastomer. They offer a robust and highly economical solution. However, they remain prone to minor fluid loss upon disconnection. You should evaluate a valve quick coupling of this type for applications where slight drips are acceptable. They handle moderate flow rates efficiently but require catch basins in sensitive areas.
Heavy-duty applications generate extreme pressure impulses. Hydraulic hammers and demolition shears destroy standard push-to-connect mechanisms. Screw-to-connect designs solve this problem. The threaded collar eliminates brinelling. Brinelling occurs when locking balls dimple the male receptacle under intense vibration. Furthermore, these heavy-duty threads mechanically force the valves open. This allows operators to easily make connections under high residual pressure.
Some circuits require double shut-off functionality. When lines sever or disconnect, you cannot allow fluid to drain. You must address the use of a steel close type coupling in these scenarios. They seal both the hose and the machine side instantly. This prevents catastrophic fluid loss and protects local environments.
Valve Type | Ideal Application | Primary Advantage | Main Drawback |
|---|---|---|---|
Flat Face | Construction, Agriculture | Zero spillage, easy to clean | Higher initial cost |
Poppet | General Industrial | Economical, high flow capacity | Minor fluid loss on disconnect |
Screw-to-Connect | Heavy Demolition, Hammers | Resists severe vibration | Slower connection speed |

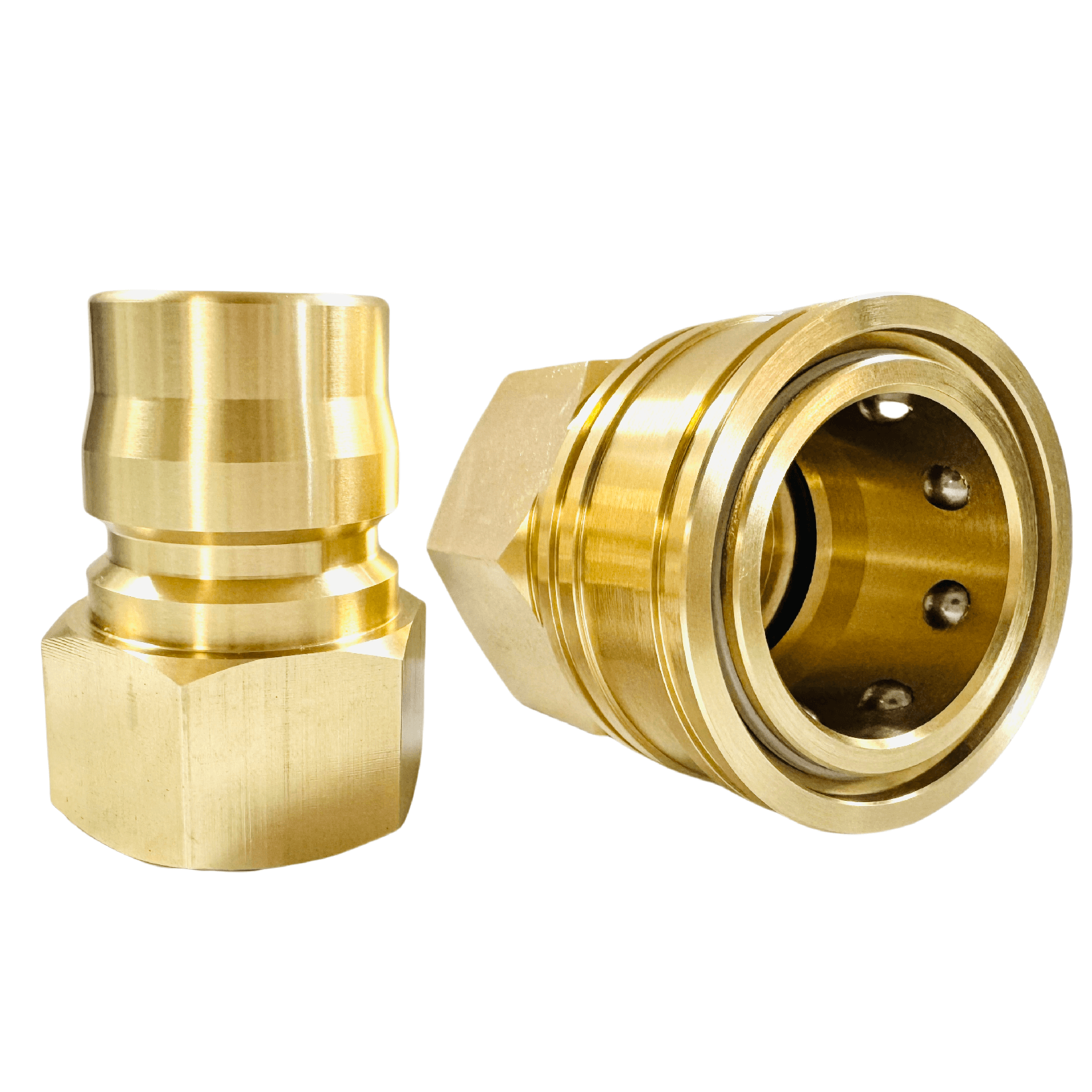

Engineers frequently misinterpret pressure ratings. You must differentiate between three distinct baseline metrics. Maximum working pressure defines the continuous operational limit. Proof pressure represents the testing threshold before permanent deformation occurs. Burst pressure indicates the point of catastrophic mechanical failure. Relying solely on continuous operating pressure invites disaster.
Hydraulic systems rarely operate in a steady state. Sudden load changes create hydraulic spikes. The industry calls this the water hammer effect. Consider a mobile excavator stopping its boom abruptly. These transient spikes easily exceed static limits by threefold. These violent surges dictate the absolute need for a true high pressure quick coupling. You must size components based on peak impulse metrics, not just the pump's steady output.
Connection Under Pressure (CUP) adds another complex layer. You must assess whether operators need to connect or disconnect while lines retain residual energy. Trapped thermal expansion or suspended loads create immense backpressure. Standard push-connect designs will physically lock up. If CUP is required, specify components featuring internal pressure-eliminating relief valves.
Always run a stringent assumption check. Never assume catalog static pressure ratings apply directly to high-cycle applications. High-impulse environments rapidly accelerate metal fatigue. Always request and verify the manufacturer's impulse cycle testing data. Authentic validation requires millions of test cycles under extreme surge conditions.
Material science dictates coupling longevity. A mismatch here dissolves seals or corrodes housings within weeks. You must evaluate both the structural metal and the internal elastomers comprehensively.
Housing materials define external durability. Standard carbon steel dominates general hydraulic applications. It provides excellent tensile strength for high-pressure mineral oils. Brass serves well in lower pressure scenarios. It naturally resists water and glycol mixtures. Offshore environments demand stainless steel. Corrosive salt spray and aggressive chemicals destroy standard steel quickly.
Seal selection represents the most common failure point. You must match the elastomer perfectly to the fluid chemistry. O-rings possess finite shelf lives. UV exposure and ozone degrade spare parts before installation. Review the following material matches:
Seal Material | Primary Fluid Match | Operational Limitations |
|---|---|---|
NBR (Nitrile) | Standard mineral-based hydraulic oils | Fails rapidly in high heat or synthetic fluids |
FKM (Viton) | High-temperature environments, synthetic blends | Poor performance in extreme sub-zero conditions |
EPDM | Phosphate ester fluids, steam | Swells and disintegrates upon petroleum contact |
The connection interface requires equal scrutiny. The hydraulic hose coupling end must match the port standard strictly. NPT, BSPP, ORB, and DIN threads utilize different sealing mechanics. Do not rely on unauthorized adapters to bridge incompatible threads. Adapters introduce unnecessary leak points. They extend the physical envelope of the assembly, making it more vulnerable to impact.
Complex procurement requires standardized checklists. The STAMPED framework ensures teams account for all critical variables before issuing purchase orders. Review this scannable checklist for engineering alignment:
Size: Measure the internal diameter accurately. Determine the maximum allowable flow rate limits to prevent excessive pressure drops.
Temperature: Record ambient environmental fluctuations. Note internal fluid operating temperatures separately.
Application: Document external mechanical threats. Identify continuous vibration frequencies, side-load risks, and expected duty cycles.
Media: Specify the exact fluid brand. Account for fluid viscosity shifts and specific chemical makeup.
Pressure: Log the maximum continuous operating pressure. Record the highest measured impulse peaks accurately.
Ends: Identify the specific thread types required. Note any special panel mounting or bulkhead configurations.
Delivery: Confirm market availability. Evaluate the vendor's technical support and replacement part lead times.
Skipping any single letter in this framework compromises the entire system design. A perfect coupling fails if the delivery network cannot provide replacement seals during an emergency outage.
Even perfectly specified components fail under poor installation practices. Installation realities often differ drastically from engineering drawings. The most common physical threat is side-loading. Heavy, unsupported hoses pull laterally on the connection point. This leverage causes premature seal wear. It distorts the locking sleeve mechanism over time. Route hoses securely to maintain strict linear alignment.
High-traffic zones require rigid safety protocols. Vibrations and accidental impacts frequently dislodge standard locking sleeves. You must use safety locking sleeves or secondary physical locks on a hydraulic disconnect coupling. These mechanisms require a deliberate "twist and pull" motion to separate. They prevent catastrophic uncoupling when pressurized lines snake across busy factory floors. Watch out for weeping connections. A slow drip never fixes itself. It indicates microscopic seal tearing.
Contamination control demands rigid discipline. Dust caps and plugs represent the highest return on investment in fluid power maintenance. Field data shows a harsh reality. Approximately 80% of hydraulic system failures trace back to particulate contamination. This dirt enters almost exclusively at the coupling point during routine disconnections. Train operators to wipe faces aggressively. Mandate the use of protective caps immediately upon separation.
Shortlisting your final hardware requires objective logic. Base your final vendor selection on transparent, certified testing data. Rely heavily on documented ISO standards rather than vague marketing claims. Prioritize the immediate availability of replacement seals and specific application matching over the upfront unit cost. Cheap components guarantee expensive downtime.
Take immediate action to secure your circuits. Advise your maintenance teams to audit current system pressure drops. Map out the mechanical friction points across your machinery. Define your absolute maximum impulse pressure using digital data loggers. Finally, consult directly with an engineering specialist. Request a tailored sample unit and subject it to rigorous field testing before full-scale integration.
A: Highly discouraged. Even if they meet the same ISO standard, slight tolerance variations between brands can lead to seal extrusion, micro-leaks, and voided warranties.
A: Specify couplings designed with internal pressure eliminators (CUP features) or utilize screw-to-connect designs that mechanically force the valves open against residual pressure.
A: Typically caused by brinelling (deformation of the locking mechanism due to pressure spikes), trapped dirt in the sleeve, or internal pressure locking.
