Views: 0 Author: Site Editor Publish Time: 2026-06-25 Origin: Site
In global mold manufacturing, injection molding, die casting, hydraulic equipment, and cooling water systems, the Quick Coupling is no longer just a small connector. A Quick Coupling directly affects cooling efficiency, mold changeover speed, leakage control, maintenance cost, and long-term production stability. For buyers, engineers, and mold makers, choosing the correct Quick Coupling standard is just as important as choosing the right mold base, water manifold, or temperature controller.
Different markets use different Quick Coupling profiles. In North America, an American Standard Quick Coupling is often used in mold coolant lines, plastic molds, die-cast dies, and related industrial water circuits. In Europe, a European Standard Quick Coupling is widely selected for mold cooling systems that require stable temperature control and compatibility with European-style mold components. In France and related markets, a French Standard Quick Coupling is often associated with RPL and RMI series structures. In Japan and Asian mold factories, a Japanese Standanrd Quick Coupling is commonly used for Japanese-style mold cooling and die casting water circulation systems.
This article compares the four major Quick Coupling standards: American, European, French, and Japanese types. It explains the main differences in structure, connection style, nominal bore, thread selection, open flow design, shut-off design, application scenarios, and buyer decision logic. If you are sourcing a Quick Coupling for mold cooling, temperature control, hydraulic water connection, or replacement of existing mold components, this guide will help you choose the right Quick Coupling standard more confidently.
A Quick Coupling is designed to connect and disconnect fluid or gas lines quickly, usually without tools. In mold cooling systems, a Quick Coupling connects cooling channels, hoses, manifolds, mold temperature controllers, and water circuits. During mold changeover, operators often need to disconnect several hoses and reconnect them to another mold. A reliable Quick Coupling reduces downtime, limits leakage, and improves working efficiency.
The problem is that not every Quick Coupling has the same profile. A male plug from one standard may not fit a female socket from another standard. Even when two Quick Coupling products look similar, the connection profile, sleeve structure, bore size, thread type, sealing material, and shut-off design may be different. This is why buyers must understand Quick Coupling standards before placing an order.
For a global mold factory, standard compatibility is even more important. One factory may run molds designed for U.S. customers, European automotive suppliers, Japanese electronics brands, and French equipment systems. If the factory chooses the wrong Quick Coupling, it may face problems such as leakage, loose connection, reduced coolant flow, poor temperature stability, difficult maintenance, or delayed production.
The table below summarizes the major differences between the four Quick Coupling standards commonly used in mold cooling and industrial fluid connection systems.
| Quick Coupling Type | Common Application | Typical Structure Focus | Common Selection Factors |
|---|---|---|---|
| American Standard Quick Coupling | Plastic molds, die casting molds, heating and cooling systems | 200, 300, 500 series; open flow or valved type | PT/NPT thread, bore size, brass body, O-ring material, pressure rating |
| European Standard Quick Coupling | European mold cooling, temperature control, water circuits | 6mm, 9mm, 13mm nominal diameter; open or closed structure | PT or metric thread, electroplated shell, pressure and temperature resistance |
| French Standard Quick Coupling | Mold cooling, temperature control, RPL/RMI replacement | RPL open flow; RMI open or valved; color circuit identification | Nominal bore, red/blue circuit rings, shut-off need, flow capacity |
| Japanese Standanrd Quick Coupling | Japanese mold cooling, plastic molds, die casting molds | Open flow or valved type; PT thread commonly used | PT thread, brass body, pressure resistance, temperature resistance |
This comparison shows that the Quick Coupling decision is not only about diameter. A proper Quick Coupling selection also depends on standard profile, thread type, flow rate, sealing design, working pressure, temperature, mold layout, and maintenance frequency.

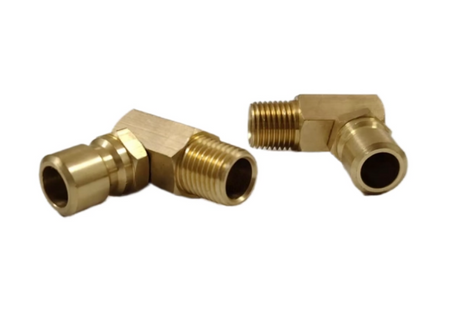

An American Standard Quick Coupling is commonly used in mold cooling systems, die casting molds, plastic injection molds, and heating or cooling circulation systems. This Quick Coupling type is often selected when the mold design follows American-style cooling components or when the buyer needs compatibility with DME-style cooling connectors.
A typical American Standard Quick Coupling can be divided into several series, such as 200 series, 300 series, and 500 series. The series usually relates to connection size and flow capacity. In practical use, a larger Quick Coupling may support higher flow demand, while a smaller Quick Coupling may be suitable for compact mold cooling circuits.
One important feature of an American Standard Quick Coupling is the choice between open flow and valved structure. An open flow Quick Coupling allows fluid to pass freely and is suitable for systems where a small amount of drainage during disconnection is acceptable. A valved Quick Coupling includes a shut-off function that helps reduce leakage when the connector is disconnected. This is especially useful when operators frequently change molds or when the cooling medium must be controlled more carefully.
Thread selection is another key point. An American Standard Quick Coupling may use PT or NPT thread depending on the male water nipple and system requirement. For buyers, thread confirmation is critical. A wrong thread may create sealing problems even if the Quick Coupling body profile appears correct.
The American Standard Quick Coupling is a good choice for factories that prioritize strong grip, high flow, simple replacement, and compatibility with American-style mold components. It is also suitable for buyers searching for DME-compatible mold coolant connectors, brass quick couplers, male thread nipples, hose barb fittings, and 90-degree mold cooling connections.

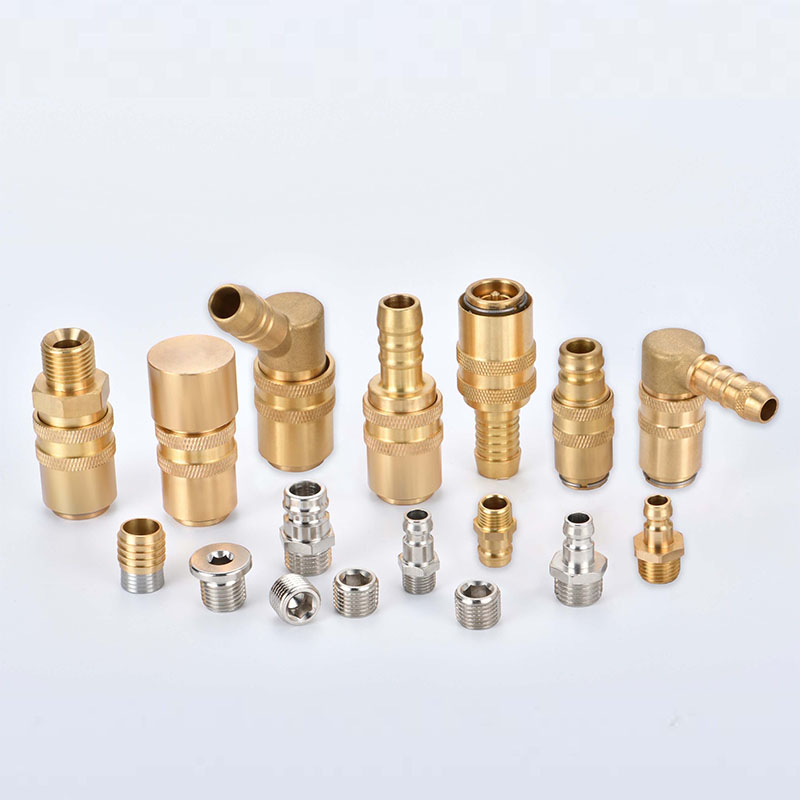

A European Standard Quick Coupling is widely used in European-style mold cooling systems. This Quick Coupling type is often selected by mold makers, injection molding factories, and equipment builders who need compatibility with European mold standards and cooling components.
The European Standard Quick Coupling commonly appears in nominal diameters such as 6mm, 9mm, and 13mm. These sizes allow buyers to match the Quick Coupling with different cooling circuit capacities. For small or medium molds, a smaller Quick Coupling may be enough. For molds that require higher coolant flow, a larger Quick Coupling may be more suitable.
Compared with the American type, the European Standard Quick Coupling is often associated with metric system thinking and European mold component layouts. The male water nipple may use PT or metric thread depending on the system. Some Quick Coupling products also use electroplated shells to help distinguish open and closed structures or improve corrosion resistance.
A key buyer concern is whether the European Standard Quick Coupling should be open flow or closed type. In high-frequency mold change operations, a closed or valved Quick Coupling can help reduce coolant leakage and keep the workplace cleaner. In lower-cost or simple cooling circuits, an open flow Quick Coupling may be enough.
The European Standard Quick Coupling is especially relevant for buyers searching for HASCO-style mold couplings, European mold cooling nipples, water quick connectors, brass fittings, hose barb nipples, and male/female extension fittings. If the customer’s mold base, water manifold, or mold temperature controller follows a European system, a European Standard Quick Coupling is often the safer selection.

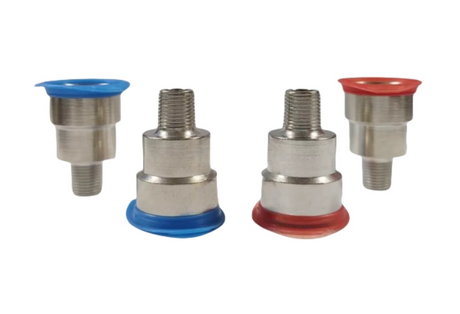

A French Standard Quick Coupling is commonly used in mold cooling and temperature control systems where French-style connection profiles are required. This Quick Coupling category is often associated with RPL and RMI series products.
The RPL series French Standard Quick Coupling is usually an open flow design. It is often used in mold cooling circuits where easy connection, easy disconnection, and quick circuit identification are important. A useful feature of some RPL-style Quick Coupling products is the use of red and blue rings. These color rings help operators identify cooling circuits quickly, reducing the risk of connecting the wrong hose during mold setup.
The RMI series French Standard Quick Coupling usually offers more flexibility. It may be available in both open flow and valved designs. The RMI-style Quick Coupling may include different nominal bore sizes, allowing the buyer to select the correct flow capacity for the mold cooling or temperature control circuit. For complex molds, multiple bore options make the Quick Coupling selection more precise.
A French Standard Quick Coupling is especially valuable in factories that need fast mold handling, clean connection, stable temperature control, and easy maintenance. Since sealing rings can often be replaced, maintenance is easier when compared with replacing the full Quick Coupling assembly.
A Japanese Standanrd Quick Coupling is designed for Japanese-style mold cooling systems, plastic molding, and die casting mold water circulation. This Quick Coupling type is generally made of brass or copper alloy and is commonly divided into open flow and valved types.
A typical Japanese Standanrd Quick Coupling often uses PT thread on the male water nipple. For buyers, this detail is very important. When replacing an existing Quick Coupling, the standard profile and the thread standard must both match. If the profile is correct but the thread is wrong, the Quick Coupling may still fail during installation.
The Japanese Standanrd Quick Coupling is often selected by factories serving Japanese automotive, electronics, home appliance, precision molding, and die casting supply chains. These applications require stable water circulation, quick mold setup, and reliable sealing performance. A good Quick Coupling helps operators reduce setup time and maintain consistent mold temperature.
One of the most important decisions in Quick Coupling selection is whether to choose an open flow Quick Coupling or a valved Quick Coupling.
An open flow Quick Coupling allows fluid to flow through the connector without an internal shut-off valve. When disconnected, some fluid may drain from the line. This type of Quick Coupling is simple, economical, and suitable for applications where leakage control is not the primary concern. In many mold cooling systems, an open flow Quick Coupling is still widely used because it provides simple connection and good flow capacity.
A valved Quick Coupling includes an internal shut-off mechanism. When the Quick Coupling is disconnected, the valve helps stop fluid loss. This makes the valved Quick Coupling better for cleaner working environments, frequent mold changes, higher temperature circuits, and systems where coolant loss should be minimized.
The decision should be based on the production environment. If the factory changes molds several times per day, a valved Quick Coupling can reduce cleanup time and improve operator safety. If the factory runs long production batches and disconnects hoses less frequently, an open flow Quick Coupling may be more cost-effective.
When comparing Quick Coupling standards, buyers should not only compare product names. They should collect technical data before making the final decision.
| Selection Factor | Why It Matters for Quick Coupling Performance |
| Standard profile | Determines whether the male and female parts can connect securely |
| Nominal bore | Affects coolant flow rate and pressure drop |
| Thread type | Prevents installation mismatch and leakage |
| Open or valved design | Determines leakage control during disconnection |
| Material | Brass, stainless steel, or plated parts affect durability and corrosion resistance |
| O-ring material | Influences temperature resistance and sealing life |
| Working pressure | Must match the water, oil, air, or hydraulic system |
| Working temperature | Important for hot water, glycol, oil, and temperature control circuits |
| Mold layout | Straight, 45-degree, and 90-degree styles may be needed |
| Maintenance frequency | Frequent operation requires stronger locking and replaceable seals |
For example, a buyer replacing an American Standard Quick Coupling should confirm whether the old system uses a 200, 300, or 500 series. A buyer replacing a European Standard Quick Coupling should confirm the nominal diameter and whether the thread is metric or PT. A buyer replacing a French Standard Quick Coupling should confirm whether the product is RPL or RMI. A buyer replacing a Japanese Standanrd Quick Coupling should confirm PT thread and open or valved design.
The latest direction in injection molding is clear: factories want shorter cycle time, better part quality, less leakage, faster mold changeover, smarter production, and lower energy waste. A Quick Coupling supports all of these goals because it is located at the connection point of the cooling or temperature control system.
In modern injection molding, cooling time is often one of the largest parts of the total cycle. Better cooling design, conformal cooling channels, water manifolds, mold temperature controllers, and reliable Quick Coupling products work together to stabilize mold temperature. If the Quick Coupling restricts flow or leaks frequently, even an advanced cooling layout may not perform well.
Quick changeover is another important trend. Many factories are adopting SMED thinking, flexible production, and smaller batch manufacturing. In this environment, a Quick Coupling becomes a productivity component. A tool-free Quick Coupling allows operators to connect and disconnect hoses faster. A valved Quick Coupling reduces cleanup. A color-coded Quick Coupling reduces wrong-circuit connection. A standardized Quick Coupling inventory reduces spare part confusion.
Sustainability is also becoming more important. A leak-proof Quick Coupling helps reduce coolant loss, water waste, and contamination. A durable Quick Coupling reduces replacement frequency. A well-selected Quick Coupling also helps maintain stable temperature control, which can reduce scrap and improve part consistency.
To choose the right Quick Coupling, start with the existing mold system. If the mold was designed around American-style cooling components, an American Standard Quick Coupling is usually the first option. If the mold follows European mold standards, choose a European Standard Quick Coupling. If the system uses RPL or RMI series profiles, choose a French Standard Quick Coupling. If the system follows Japanese-style PT-thread mold cooling connectors, choose a Japanese Standanrd Quick Coupling or correctly named Japanese Standard Quick Coupling.
Second, confirm whether you need open flow or valved structure. An open flow Quick Coupling is simple and efficient. A valved Quick Coupling is better when leakage control matters.
Third, check the thread. A Quick Coupling with the wrong thread can cause installation failure, seal damage, or leakage. PT, NPT, and metric threads should not be guessed. They should be confirmed by drawing, sample, or old part number.
Fourth, check working pressure and temperature. Many mold cooling Quick Coupling products are designed for low-pressure water circuits, while hydraulic Quick Coupling products may need much higher pressure resistance. A cooling water Quick Coupling and a hydraulic Quick Coupling may look similar, but they are not always interchangeable.
Fifth, consider the angle and installation space. Straight Quick Coupling parts are common, but 45-degree and 90-degree fittings may be required when mold space is limited. If the wrong shape is selected, the hose may bend sharply, reducing flow and shortening hose life.
| Buyer Requirement | Best Quick Coupling Direction |
| Replacing DME-style mold coolant parts | American Standard Quick Coupling |
| Matching European mold base systems | European Standard Quick Coupling |
| Using RPL or RMI profiles | French Standard Quick Coupling |
| Matching Japanese mold cooling circuits | Japanese Standanrd Quick Coupling |
| Reducing leakage during mold changes | Valved Quick Coupling |
| Maximizing simple water flow | Open flow Quick Coupling |
| Managing multiple cooling circuits | Color-coded or multi-circuit Quick Coupling |
| Limited mold space | 45-degree or 90-degree Quick Coupling |
| High-temperature cooling or heating circuits | Quick Coupling with suitable O-ring and temperature rating |
| Global mold export projects | Standardized Quick Coupling with confirmed compatibility |
This table can help procurement teams shortlist the right Quick Coupling before requesting a quotation. It also helps engineering teams communicate with suppliers more clearly.
The first mistake is buying by appearance only. Many Quick Coupling products look similar, but the connection profile may be different. A similar-looking Quick Coupling may not connect properly.
The second mistake is ignoring the thread. Even if the Quick Coupling socket and plug match, the thread may not fit the mold or hose connection.
The third mistake is mixing open flow and valved structures without checking the system. A valved Quick Coupling may have different flow behavior from an open flow Quick Coupling. In some systems, this can affect cooling performance.
The fourth mistake is ignoring O-ring material. A Quick Coupling used in hot water, glycol, oil, or high-temperature circuits needs a sealing material suitable for the medium and temperature.
The fifth mistake is not standardizing spare parts. If a factory uses too many unrelated Quick Coupling standards, maintenance becomes difficult. Standardizing the Quick Coupling inventory by mold type and customer standard can reduce downtime.
A Quick Coupling may be small, but it plays a large role in mold cooling, water circulation, temperature control, and production efficiency. The correct Quick Coupling helps operators connect cooling lines faster, reduce leakage, improve mold changeover, and maintain stable process conditions.
An American Standard Quick Coupling is suitable for American-style mold coolant systems and DME-compatible replacement needs. A European Standard Quick Coupling is suitable for European-style mold cooling and HASCO-style systems. A French Standard Quick Coupling is useful for RPL and RMI series applications where circuit identification, open flow, or valved options are required. A Japanese Standanrd Quick Coupling is suitable for Japanese-style mold cooling systems, especially where PT thread and Japanese connection profiles are used.
For buyers, the best approach is to confirm the standard profile, nominal bore, thread type, material, sealing structure, pressure, temperature, and installation space before selecting a Quick Coupling. For suppliers, the best approach is to provide clear product categories, technical comparison tables, and application-based guidance. When the right Quick Coupling is selected, the entire mold cooling system becomes easier to maintain, safer to operate, and more efficient in production.
A mold coolant Quick Coupling is mainly used for water, glycol, hot water, or temperature control circuits in molds. A hydraulic Quick Coupling is designed for hydraulic oil systems and often requires higher pressure resistance. Buyers should not replace one Quick Coupling type with another unless the pressure, medium, seal, and profile are confirmed.
In most cases, an American Standard Quick Coupling and a European Standard Quick Coupling should not be mixed unless the supplier confirms interchangeability. The profile, sleeve design, nominal diameter, and thread may be different. For a reliable Quick Coupling connection, the male plug and female socket should follow the same standard.
Choose an open flow Quick Coupling if simple connection and maximum flow are more important than leakage control. Choose a shut-off or valved Quick Coupling if the system is frequently disconnected, if coolant loss must be reduced, or if the production area needs to stay clean during mold changeover.
Thread type affects installation and sealing. A Quick Coupling may use PT, NPT, metric, BSP, or other thread standards depending on the product design. If the thread does not match the mold, hose, or manifold, the Quick Coupling may leak or fail to install correctly.
Before ordering a Quick Coupling, send the supplier the standard type, male/female requirement, nominal bore, thread size, open or valved design, material, working medium, pressure, temperature, and installation angle. A photo, drawing, or old sample can also help the supplier identify the correct Quick Coupling faster.
